All Wheel Drive Regenerative-braking System Versatility Hydraulic Tipping Battery Power Mini Dumper

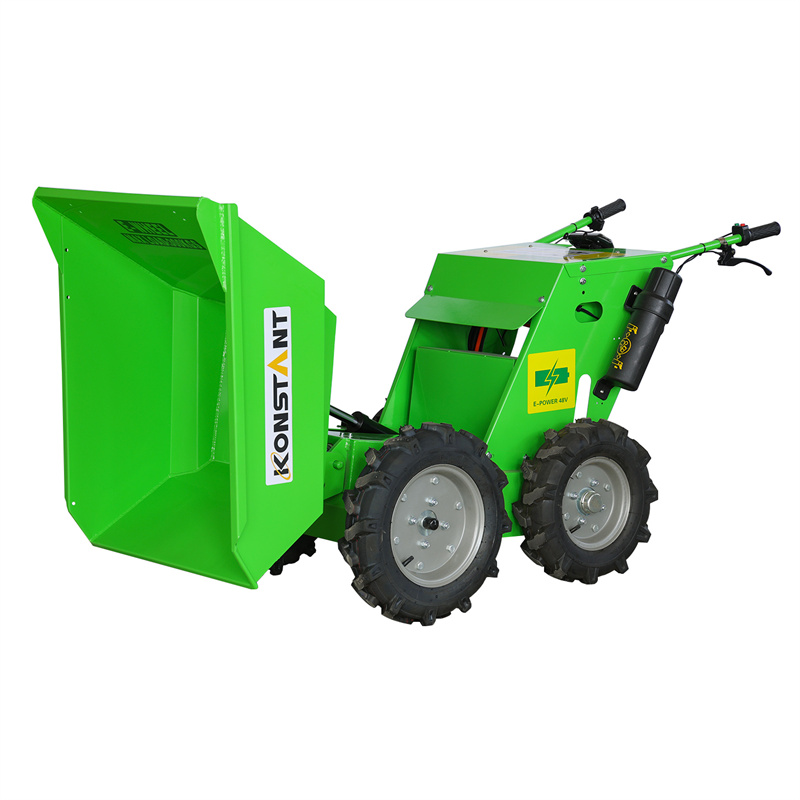

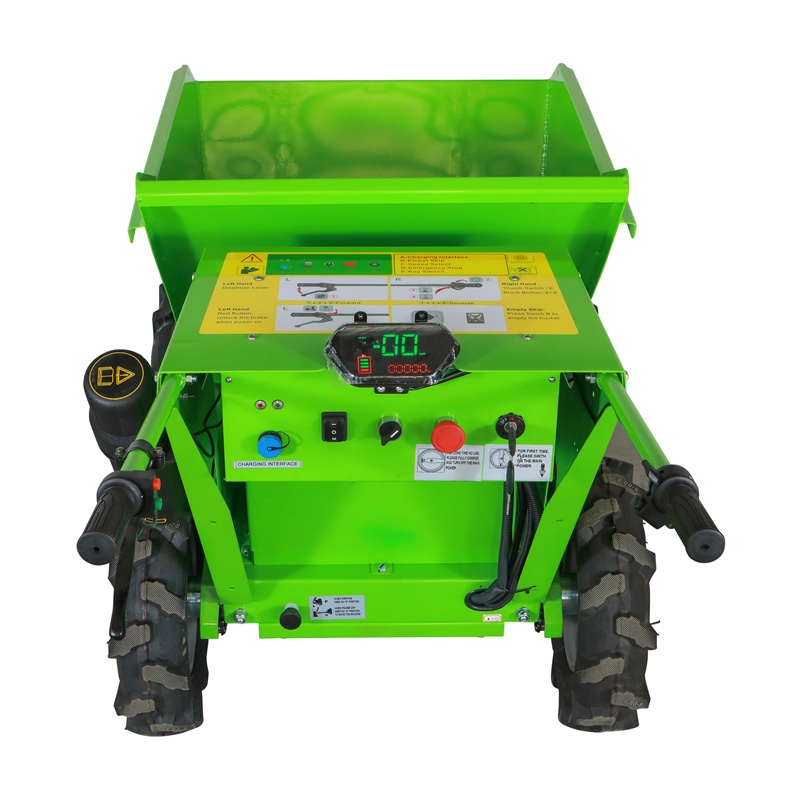

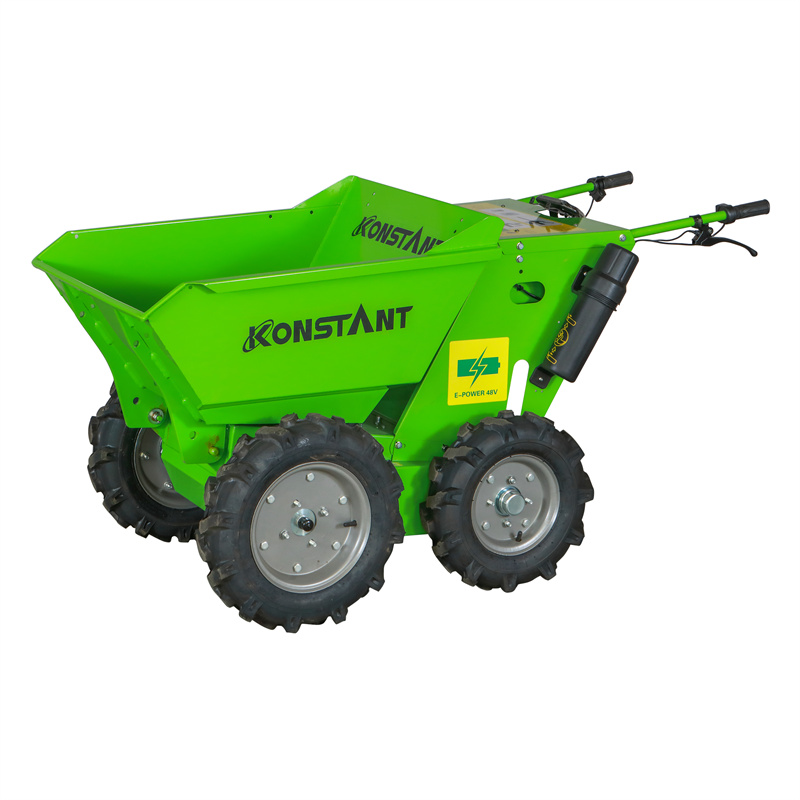

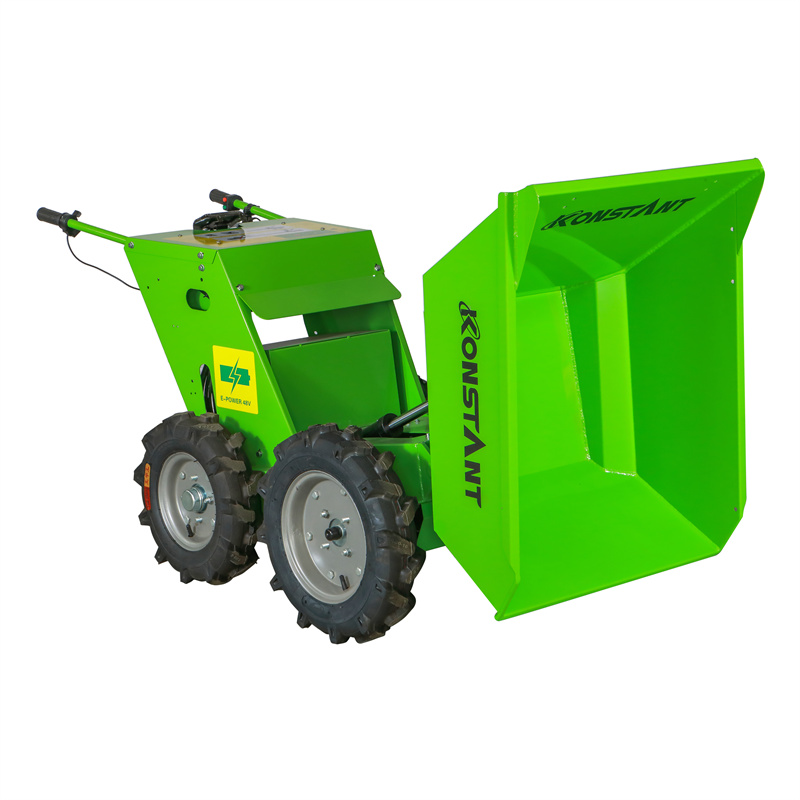

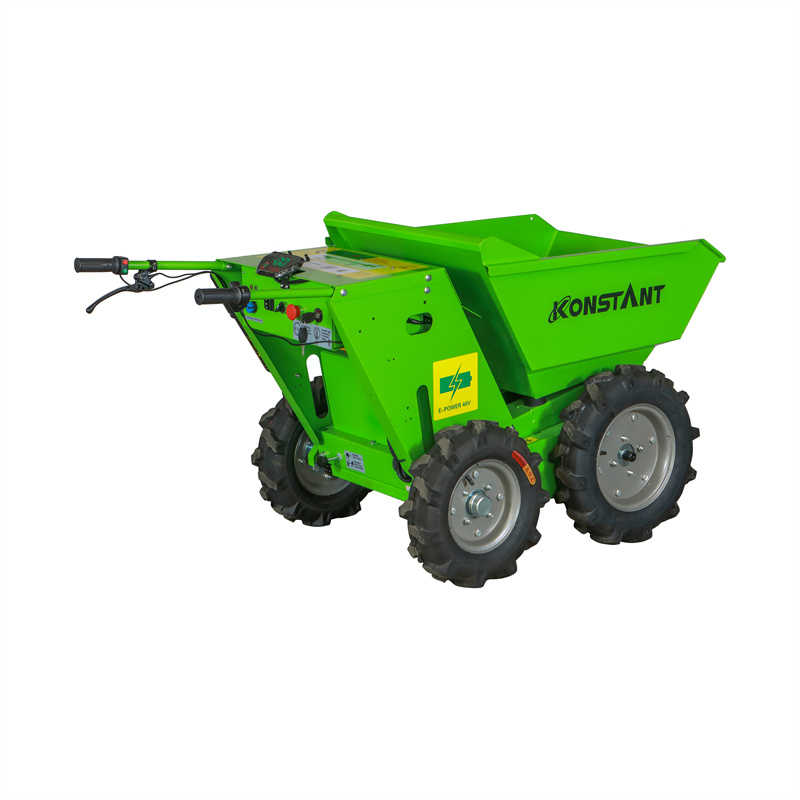

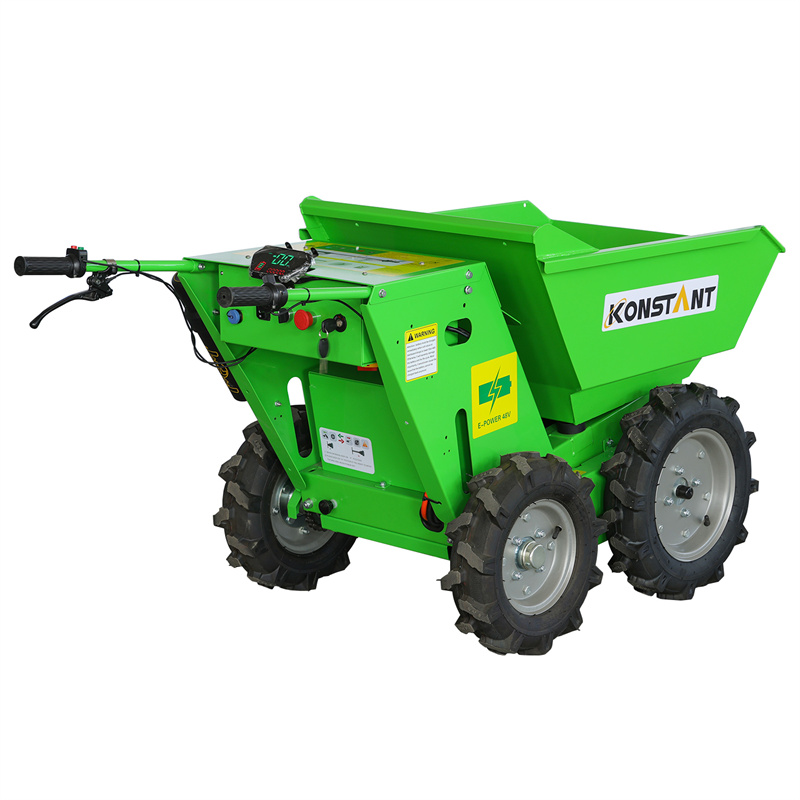

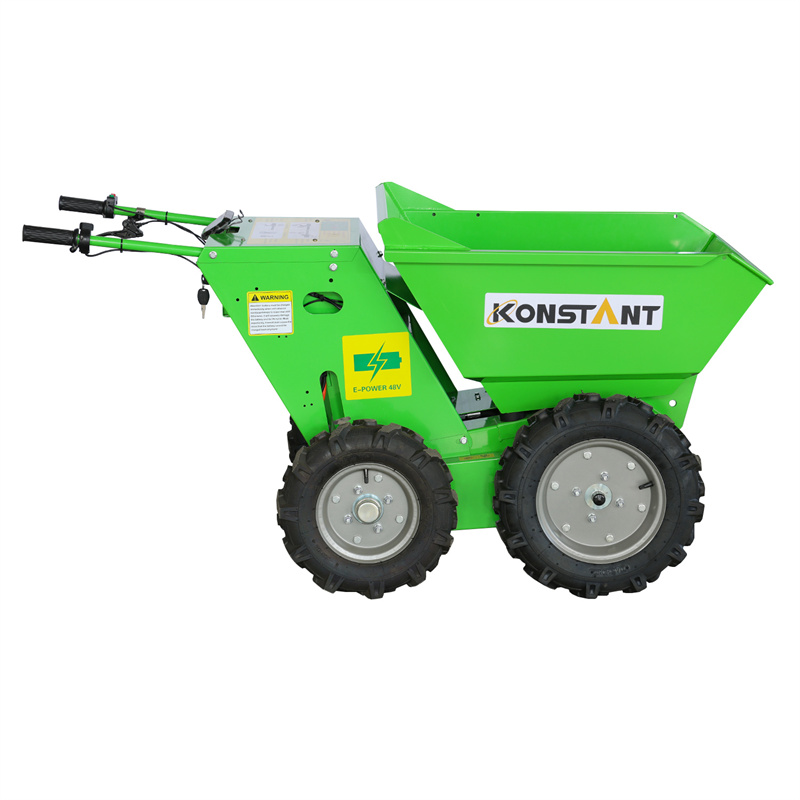

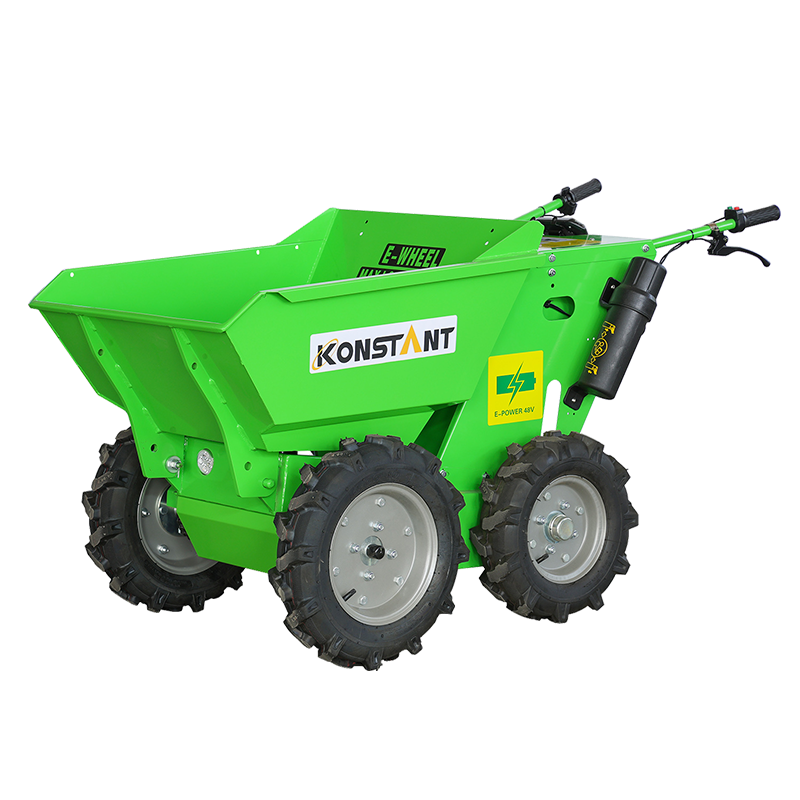

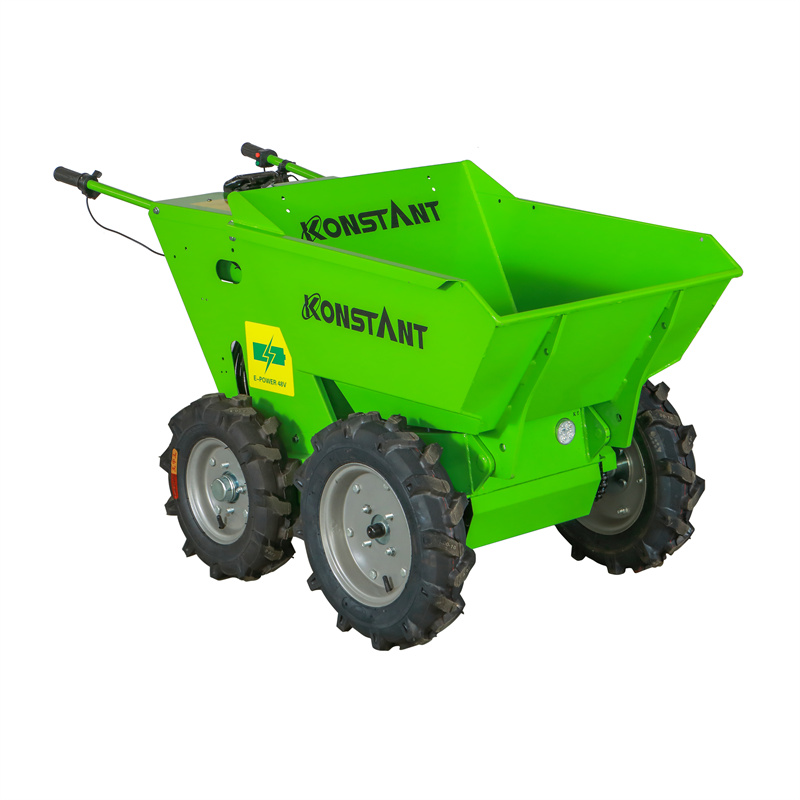

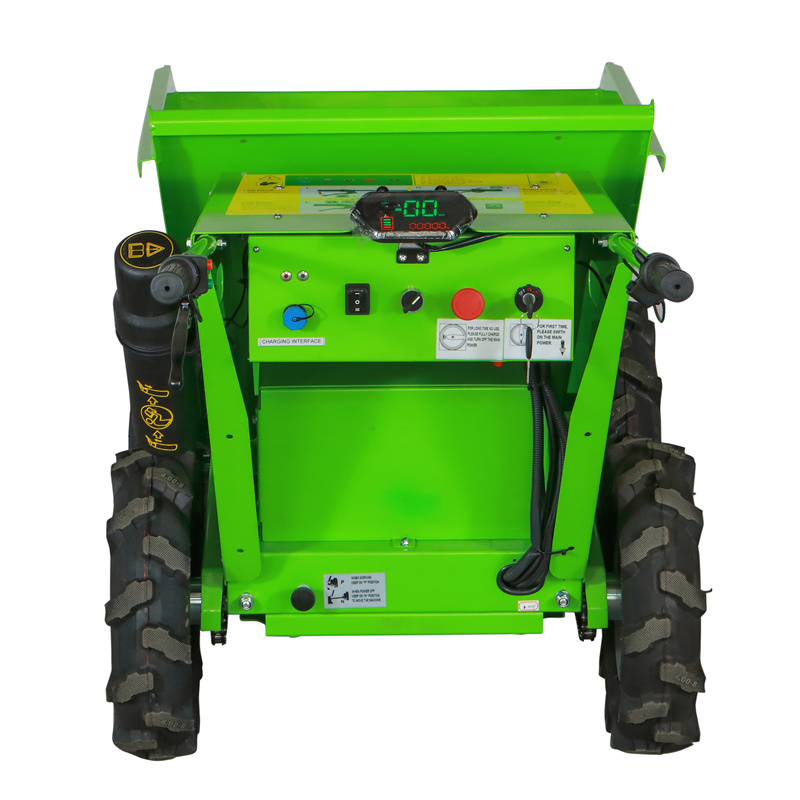

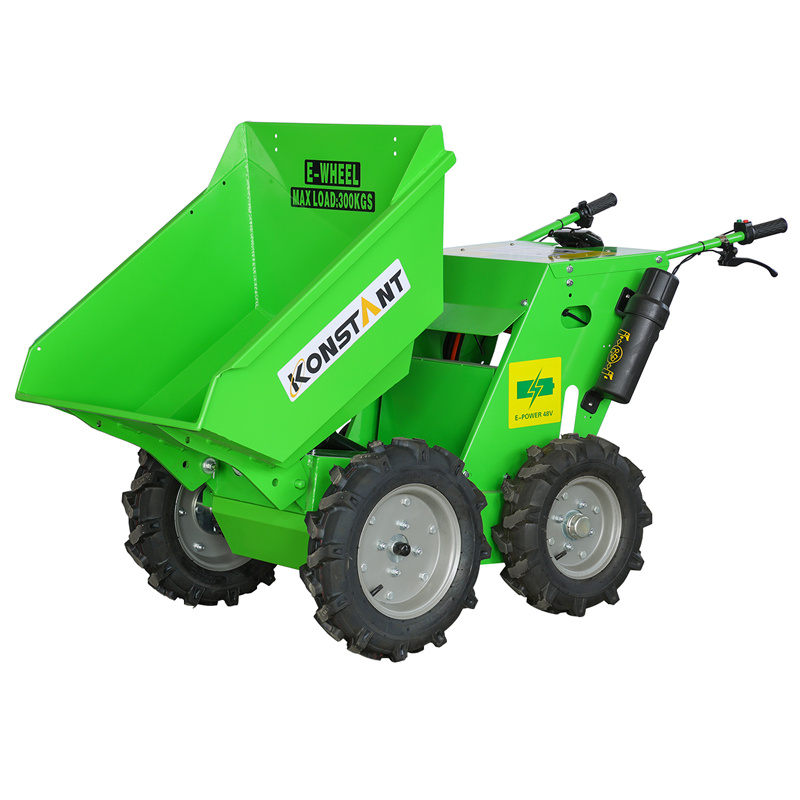

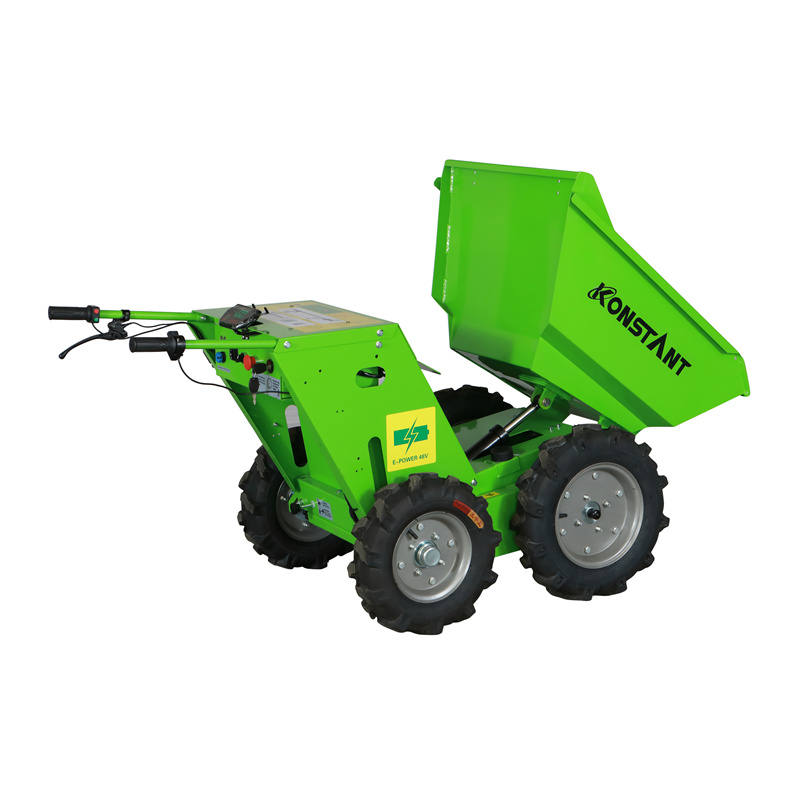

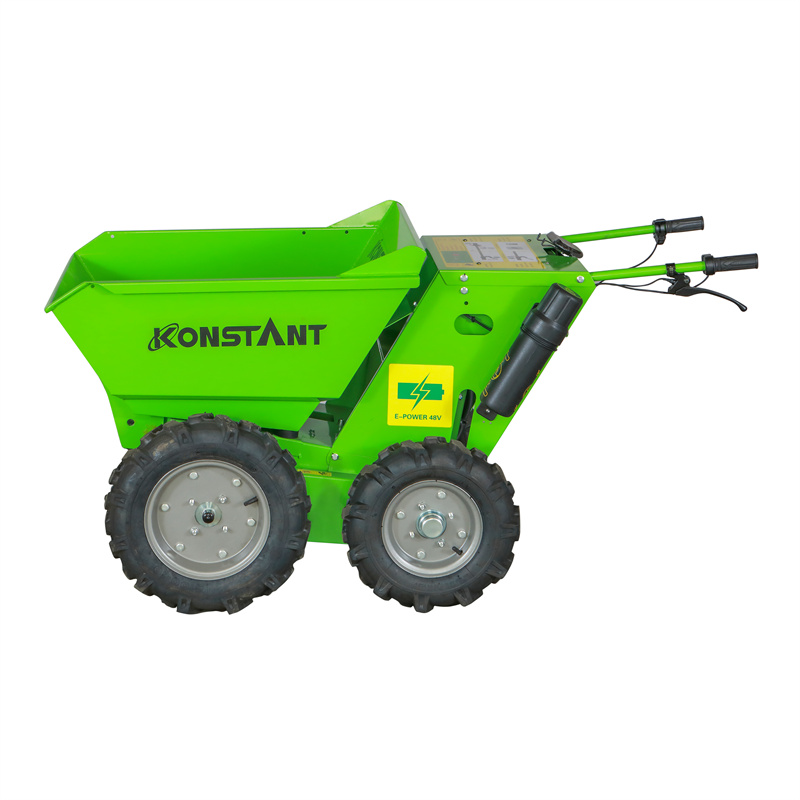

The KONSTANT All Wheel Drive Regenerative-braking System Versatility Hydraulic Tipping Battery Power Mini Dumpeis is a 4x4 Chain Drive electric vehicle. This innovative power barrow is equipped with a 48V 1000W battery system, providing versatility and light-touch operation. The regenerative braking system helps the slow down when stopping; this generates power into the battery pack, to increase efficiency and range. With a 350kg load capacity and hydraulic tip, this mini dumper is suitable for both indoor and outdoor use. Its compact size allows for easy passage through doorways or driveways, with a width of 780mm. KONSTANT's mini dumper combines load capacity with high productivity.

  • Parameter
  • Attachment
Model KT-MD300ESP Tipping Hydraulic power
Power 1000W Brushless DC motor Forward Speed 1:2.5 km/h
Battery 48V 20Ah Lead-acid Battery 2:5.3 km/h
Loading Capacity 300kg 3:7.3 km/h
Wheel Size Front 400-10, Rear400-8 Reverse Speed 2.0 km/h
Working Hours 6-8 Hours Overall Size 1650*780*920mm
Charging Hours 8 Hours N.W/G.W 170/250 kg

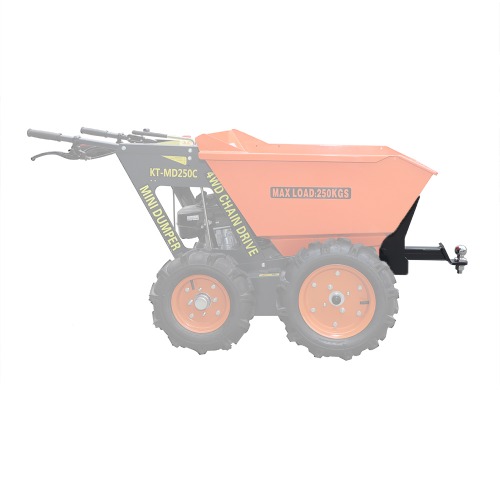

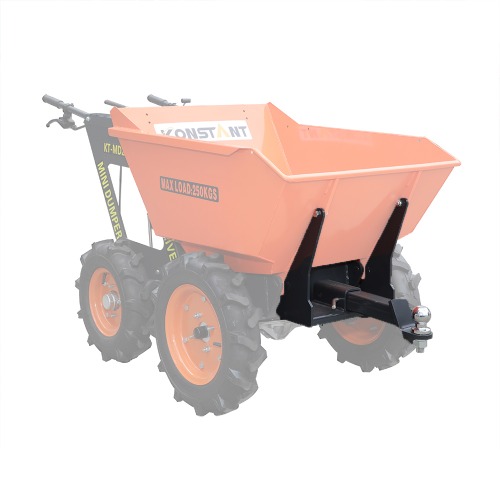

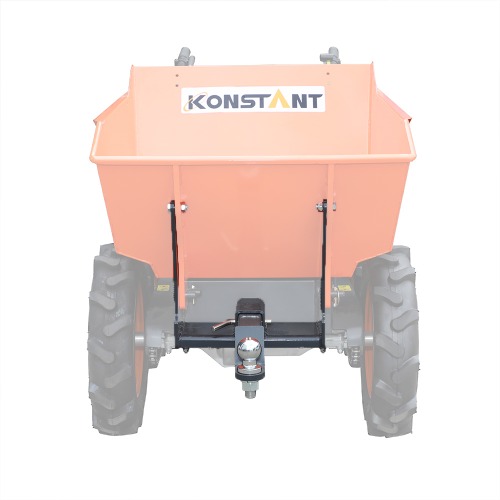

Ball Hitch

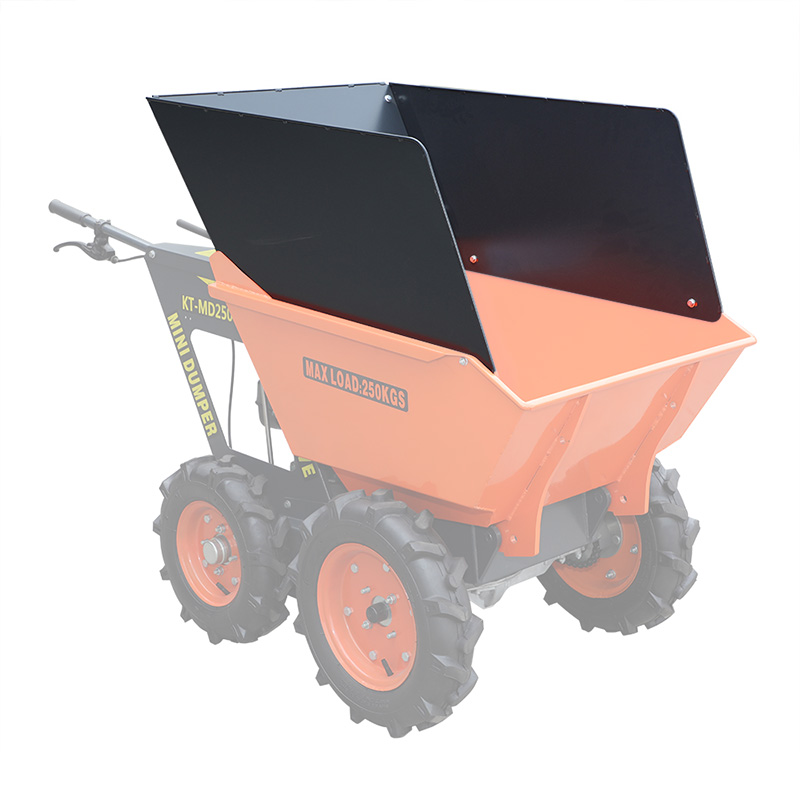

Bucket Extension

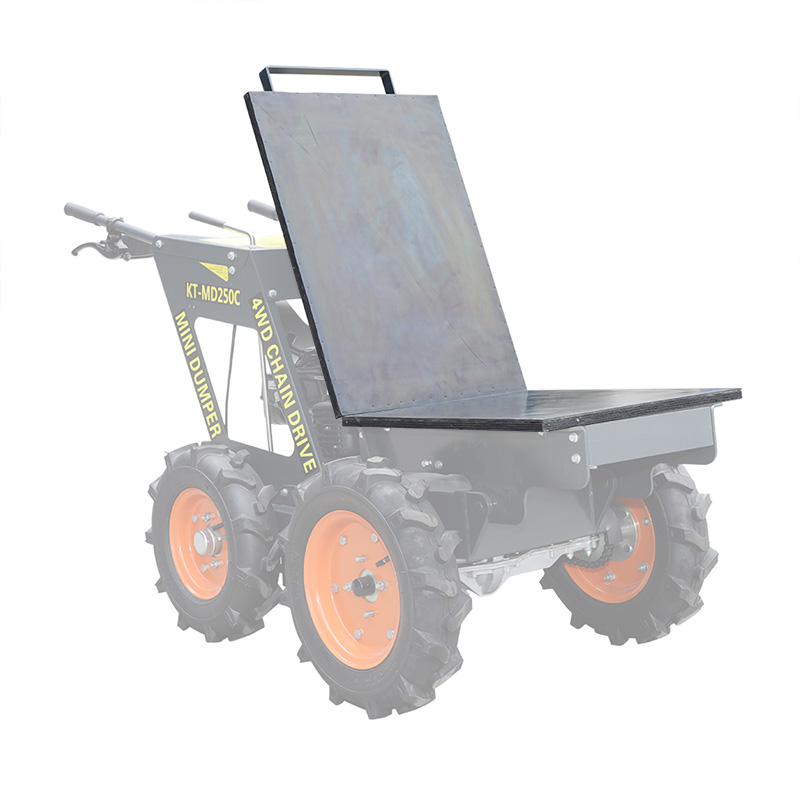

Flat Bed

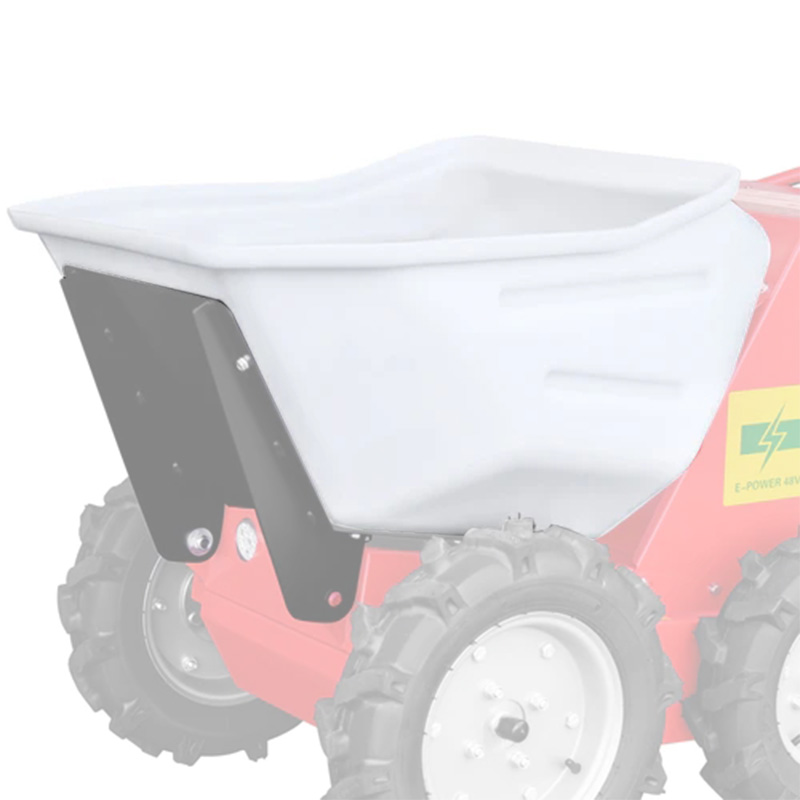

Panel Bucket

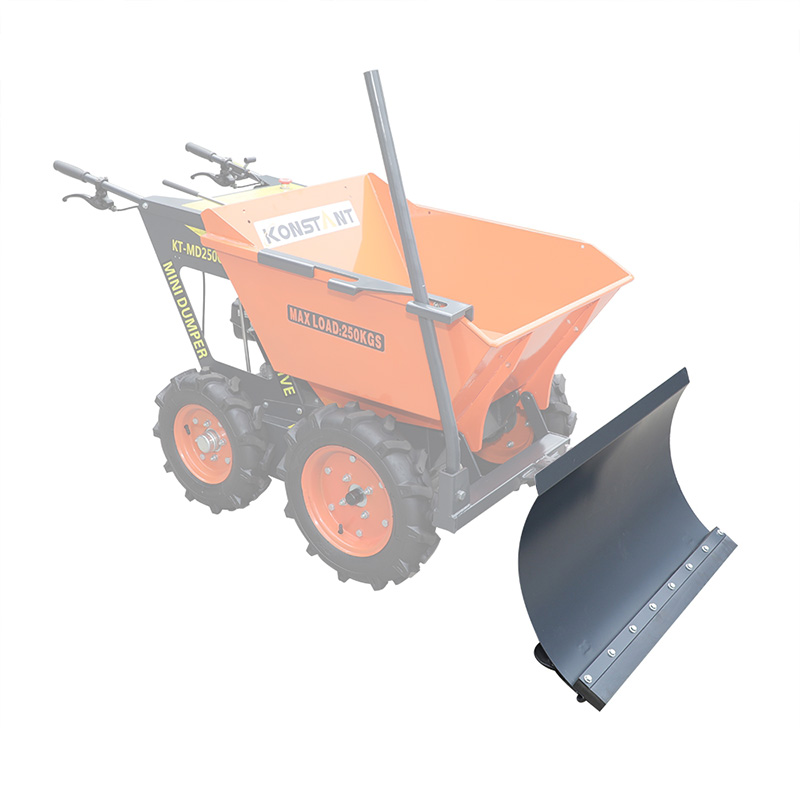

Snow Plough

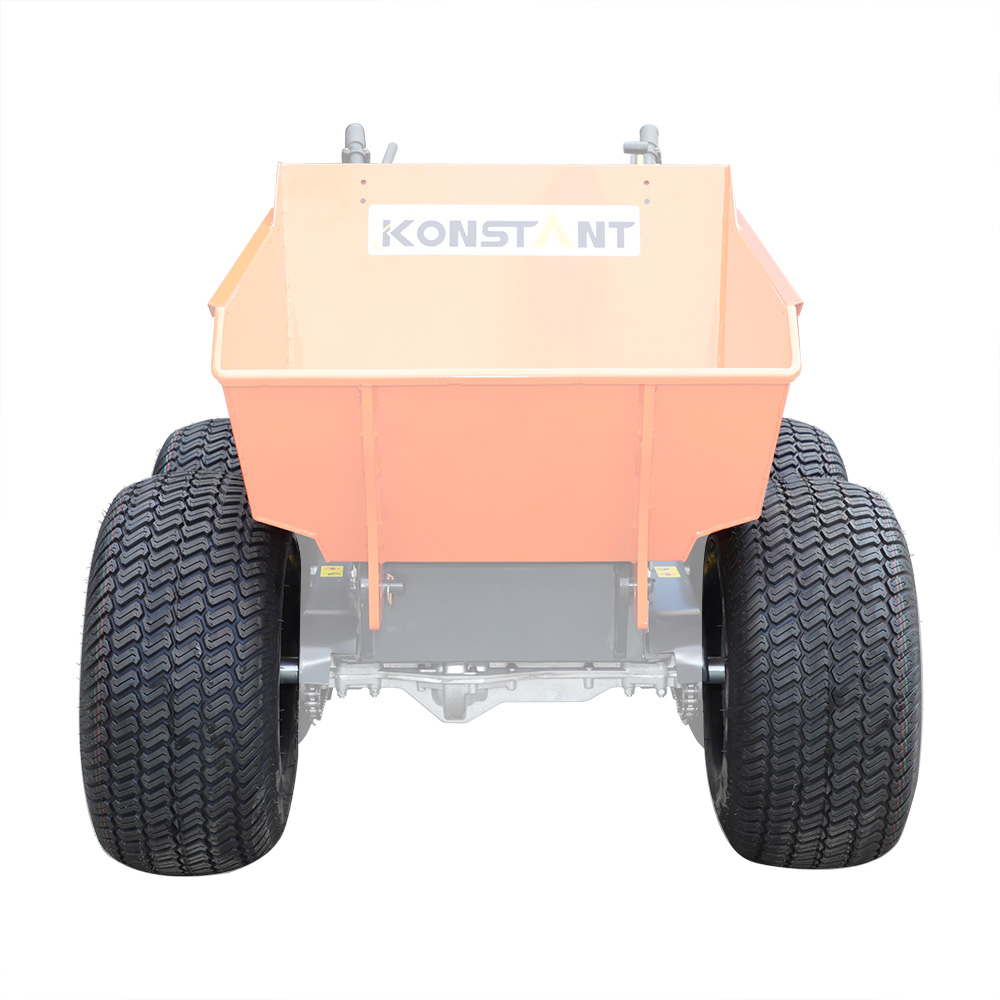

Turf Tyre
