Hydrostatic System and Steering Ball Joint 100% Electric Powered Wheel Barrow Mini Dumper

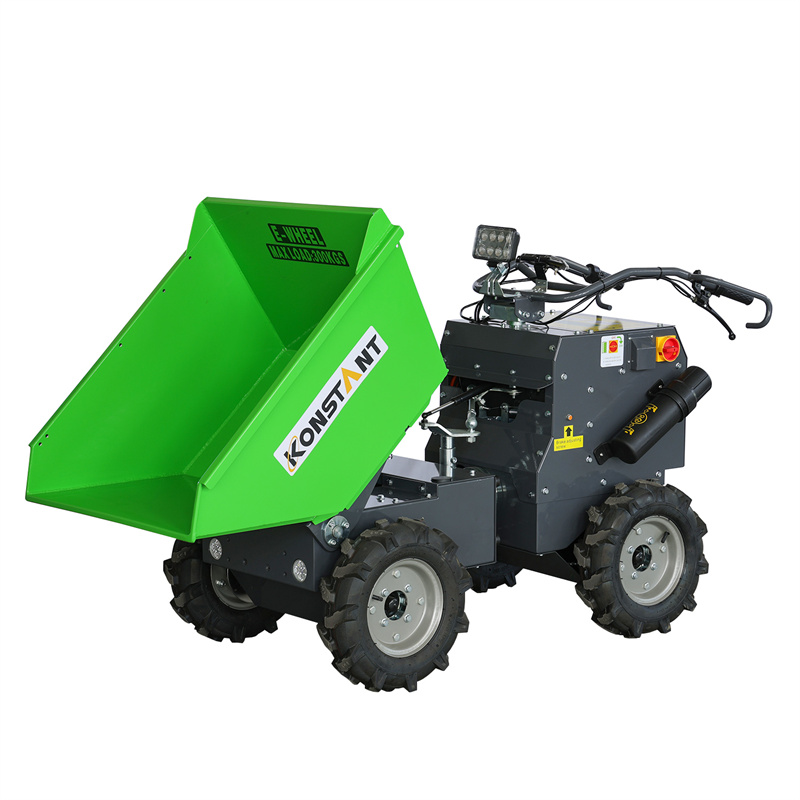

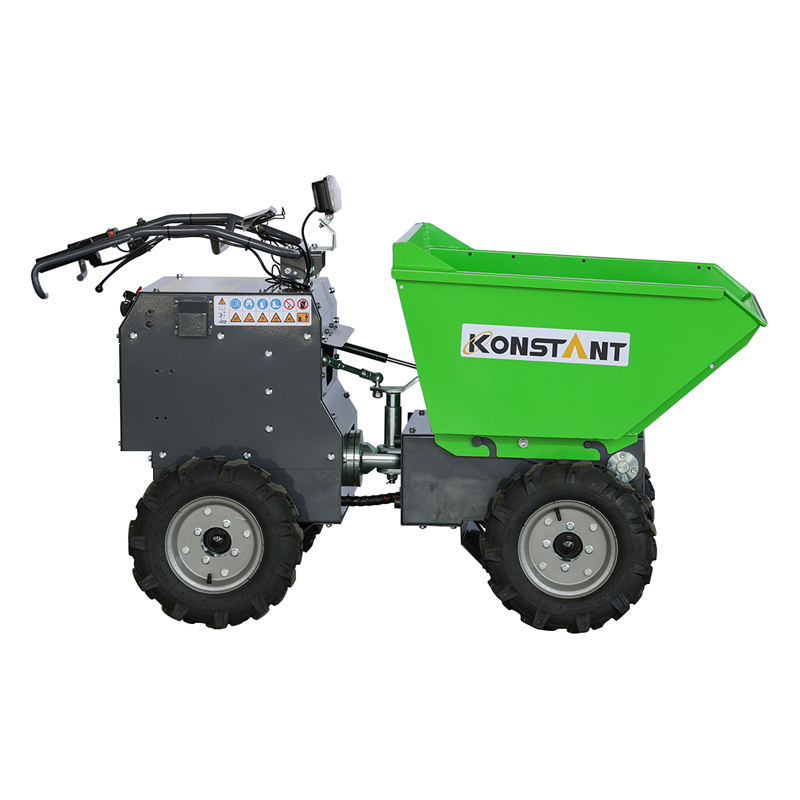

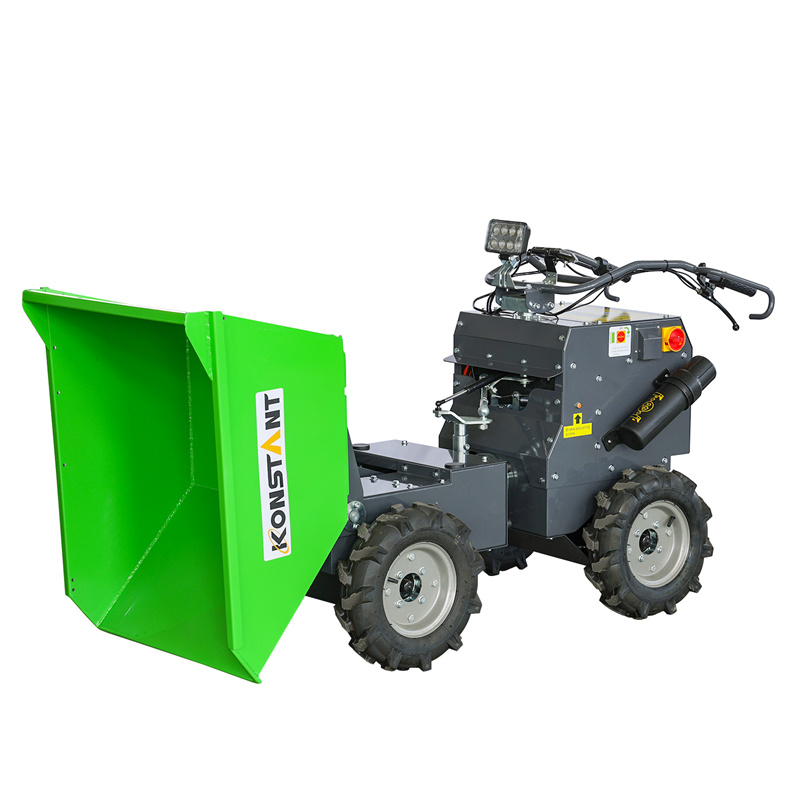

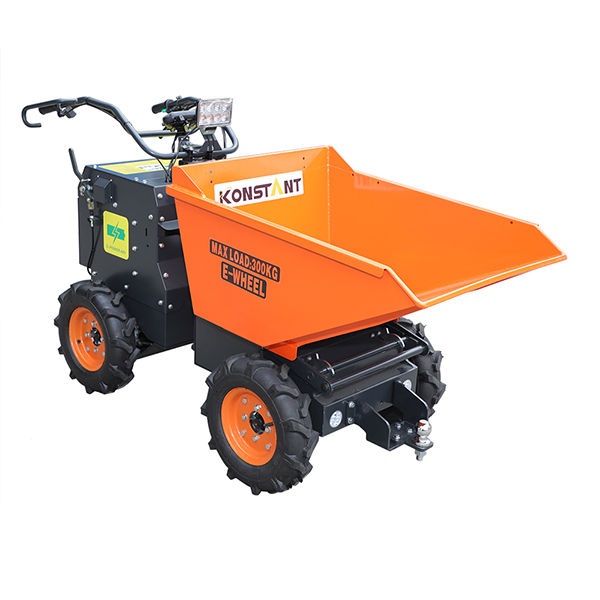

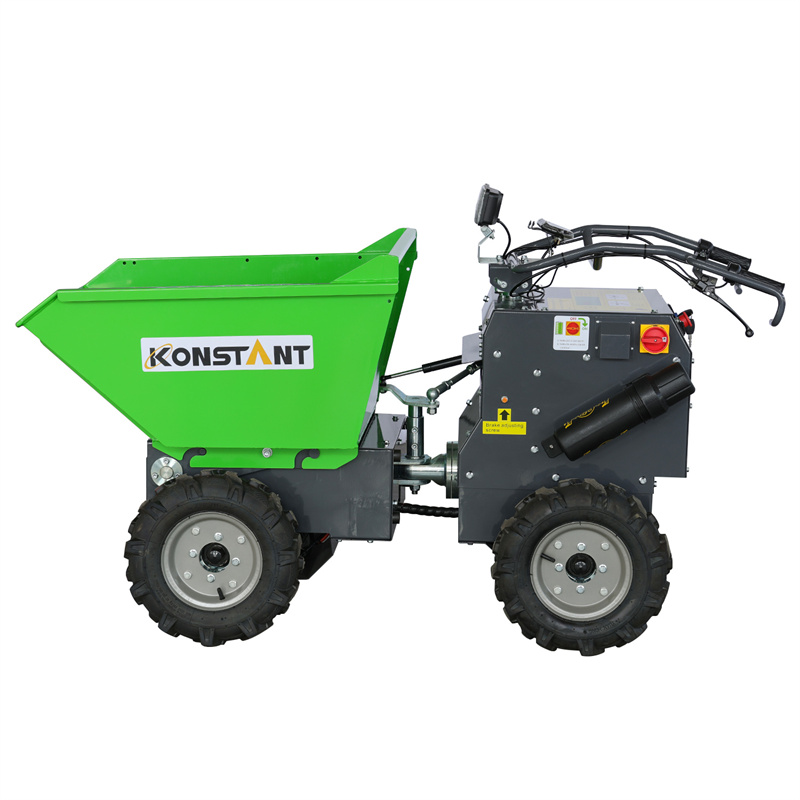

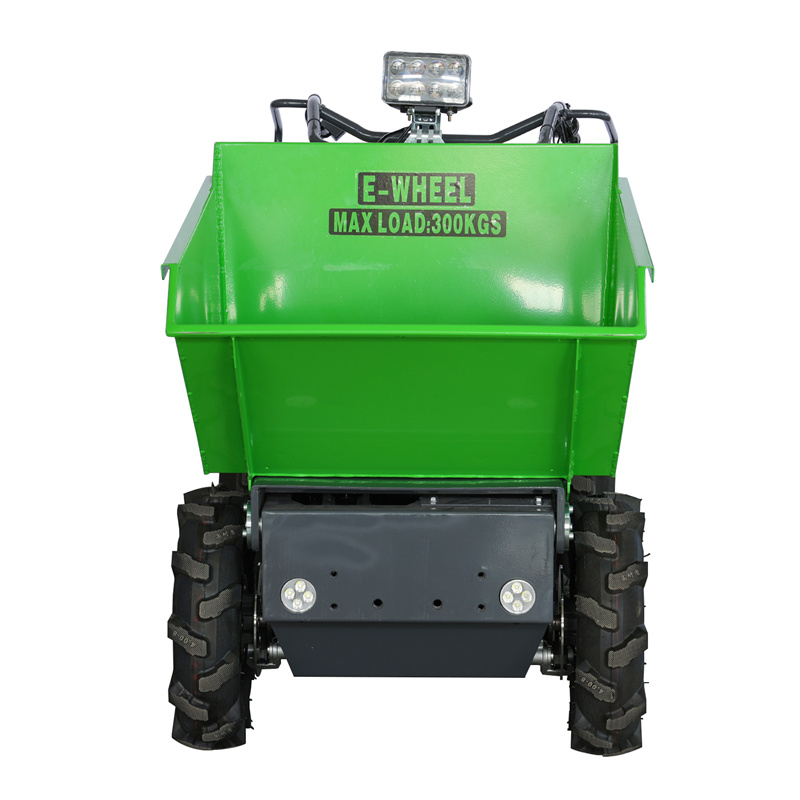

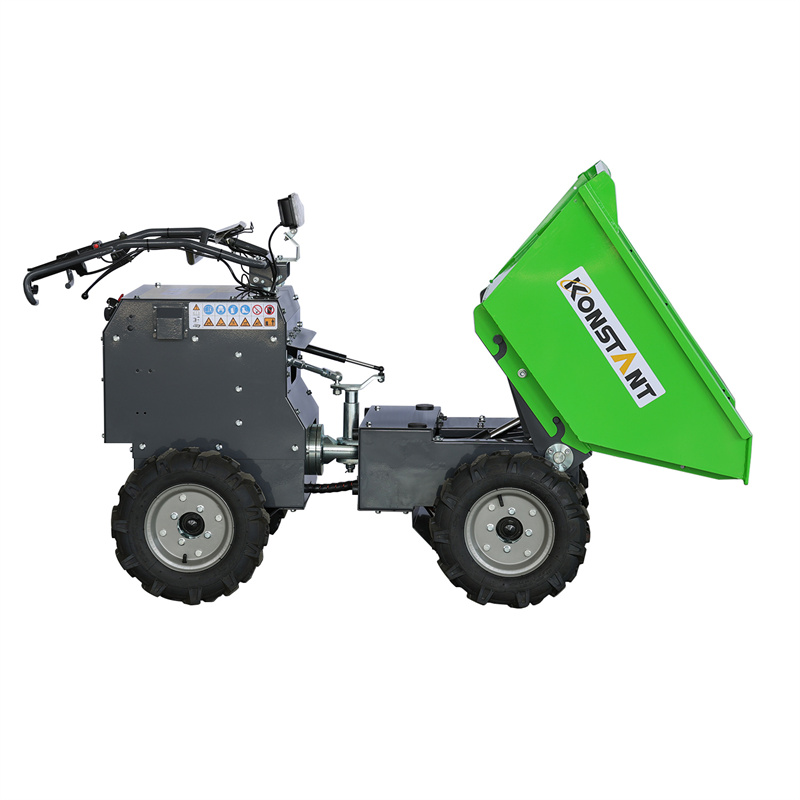

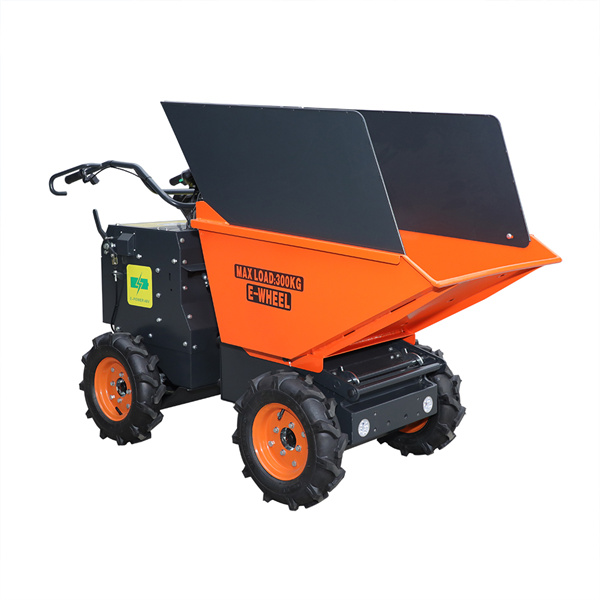

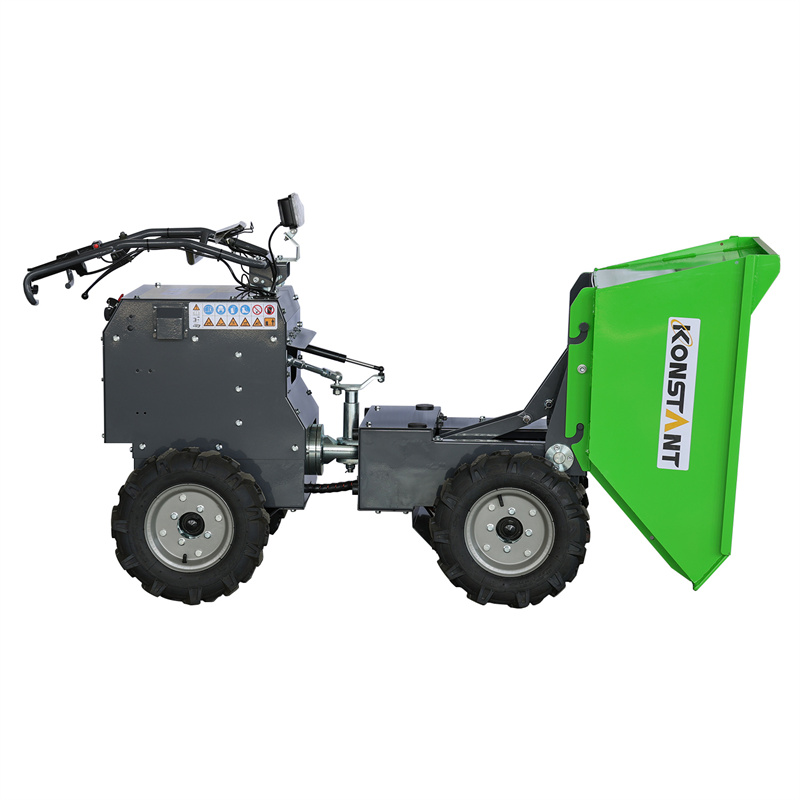

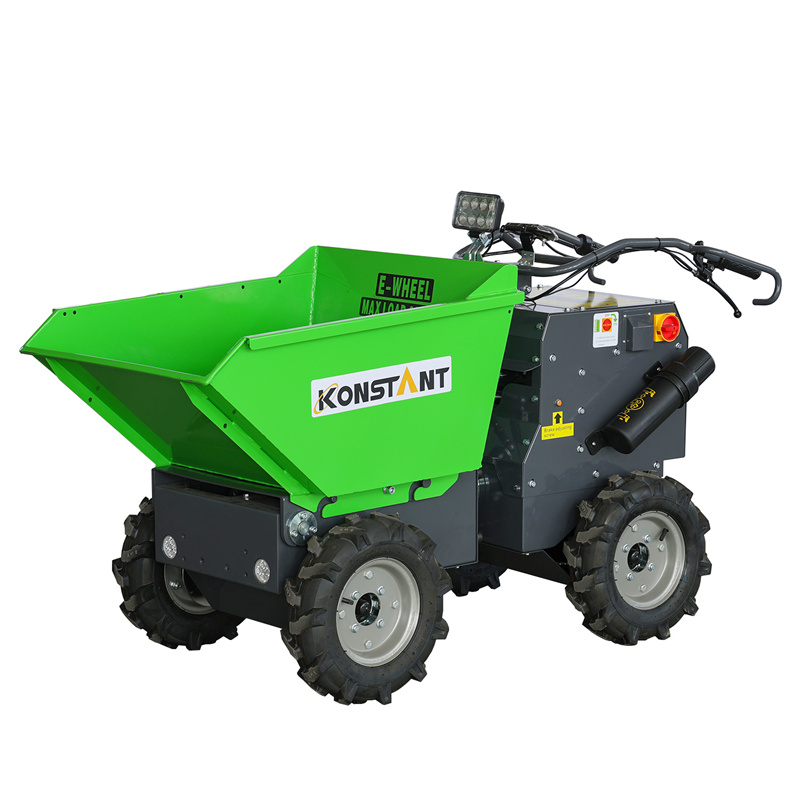

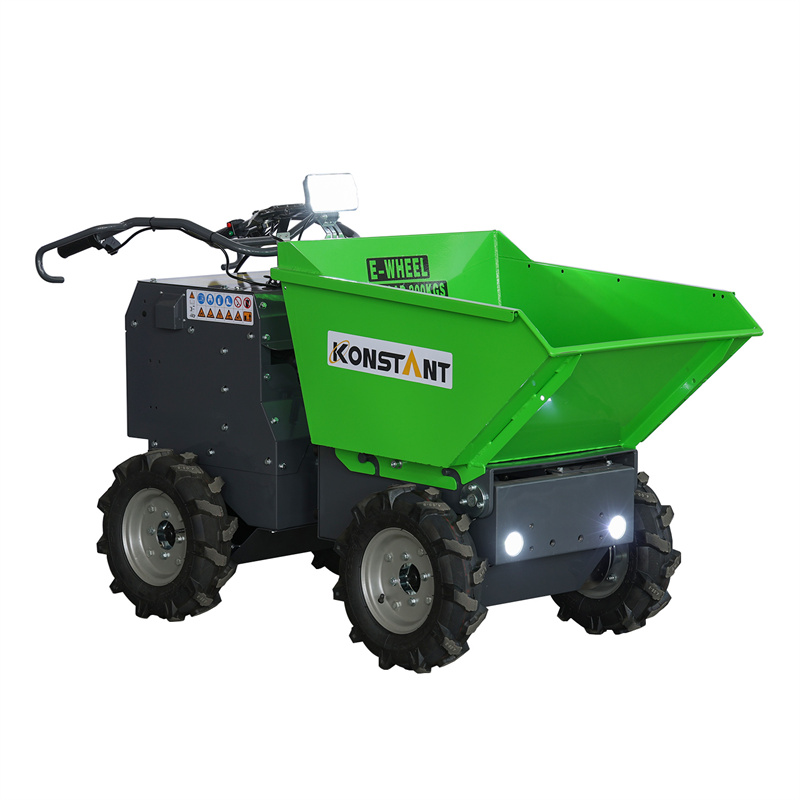

The KONSTANT Hydrostatic System and Steering Ball Joint 100% Electric Powered Wheel Barrow Mini Dumper is an upgrade to the MD300EN with a hydrostatic system. The steering pivot drive system provides ultimate maneuverability in a compact size. The swivel joint between the front & rear sections also ensures stable handling characteristics in difficult terrain. Owing to its electric motor, this electric dumper makes little or virtually no noise and importantly, produces no exhaust fumes! The electric dumper has a forward and reverse gear, and the speed is continuously adjustable (approx. 4-6 km/h forwards / 2 km/h backward). The bucket is fitted with a hydraulic tilting device for easy emptying. The loading volume is around ca.165 l; the load capacity is 400 kg. Gradients up to max. 15° when loaded is also not a problem! Thanks to the 4 integrated, hydraulic disc brakes, the electric mini dumper can also be operated downhill safely and without issue.

  • Parameter
  • Attachment
Model KT-MD300ENP Working Hours 48V 20Ah: 6-8 hours
Power 1600W Brushless DC motor 48V 40Ah: 10-12 hours
Battery 48V 20Ah Lead-acid Battery Forward Speed 1:2.5 km/h
48V 40Ah for option 2:5.3 km/h
Loading Capacity 300kg 3:7.3 km/h
Wheel Size Front 400-8, Rear400-8 Reverse Speed 2.0 km/h
Tipping Hydraulic power Overall Size 1781*704*944mm
Charging Hours 8 Hours N.W/G.W 300/350 kg

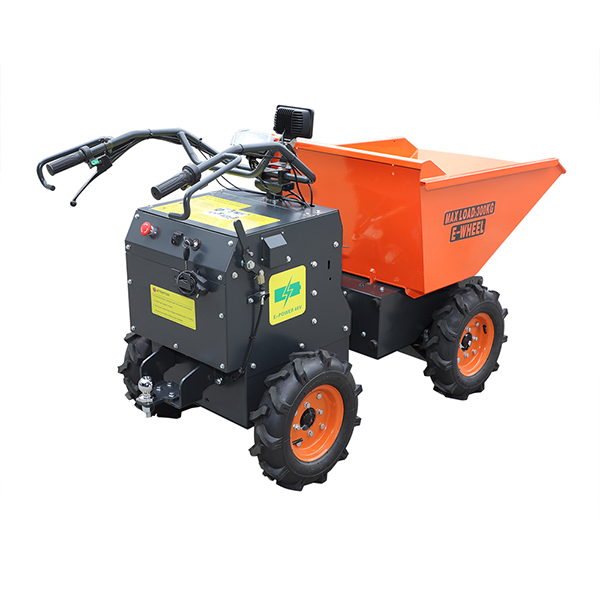

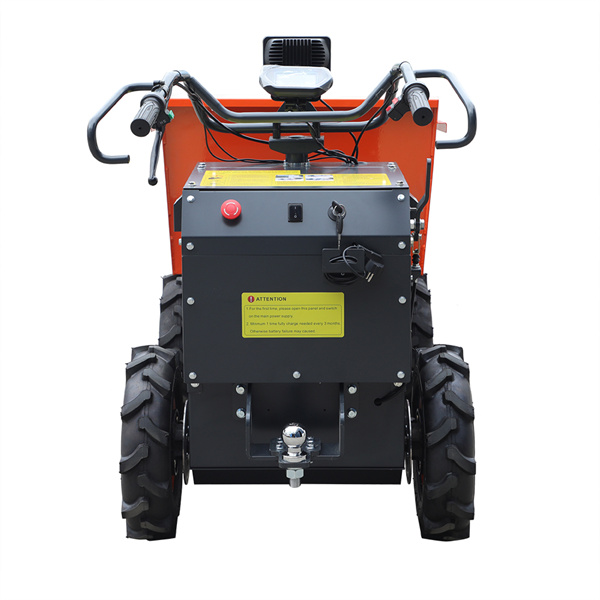

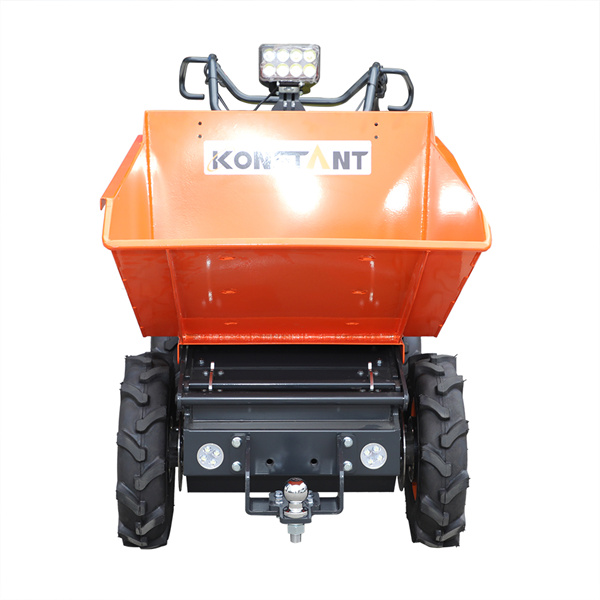

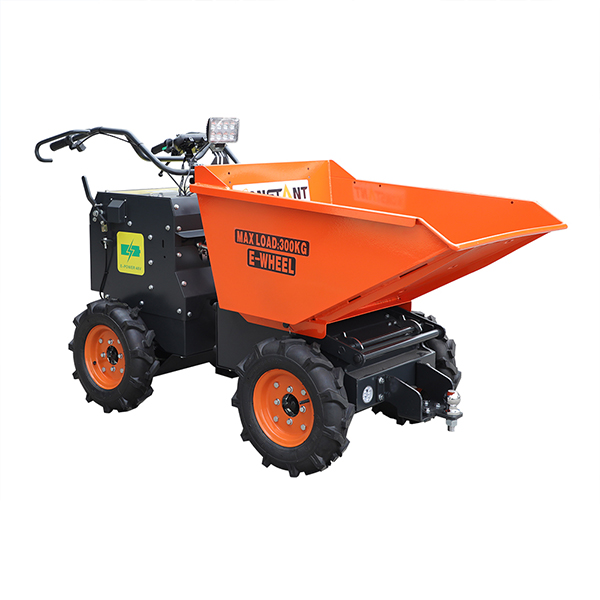

Ball Hitch

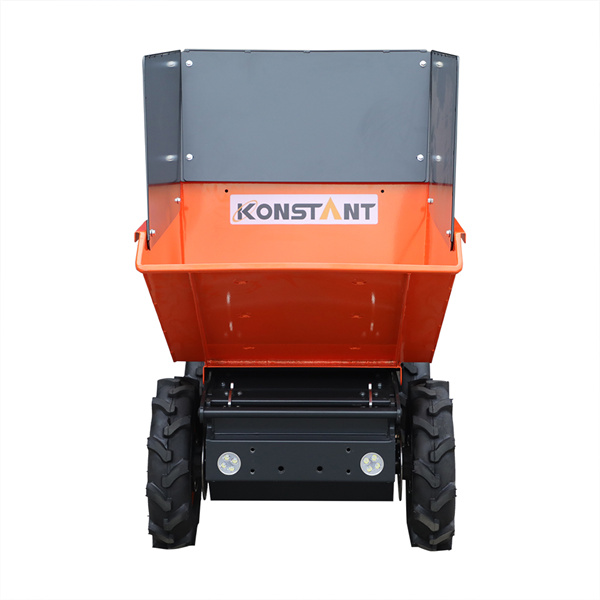

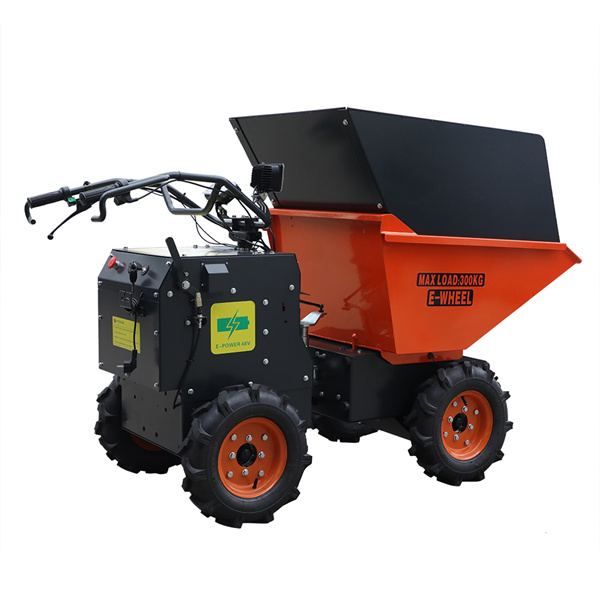

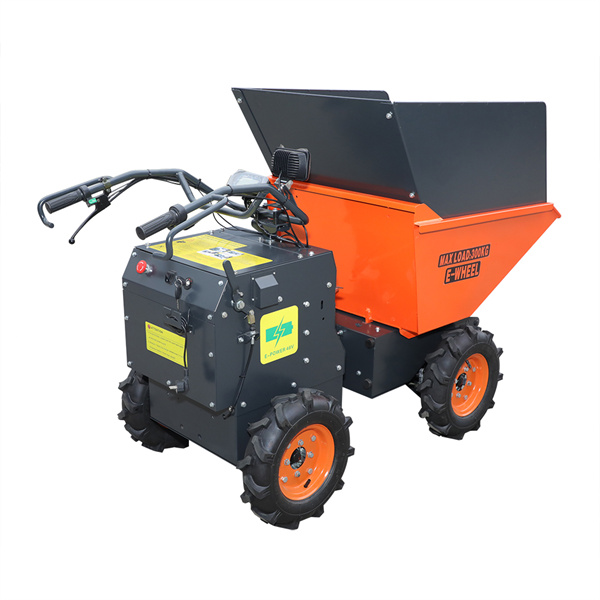

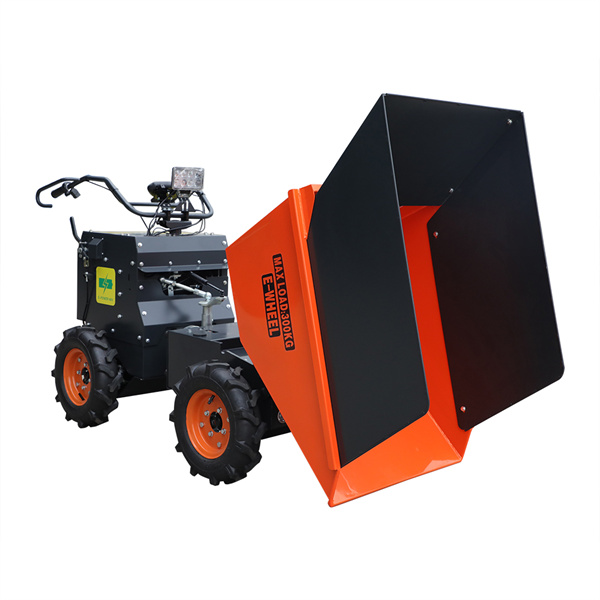

Extension Sides

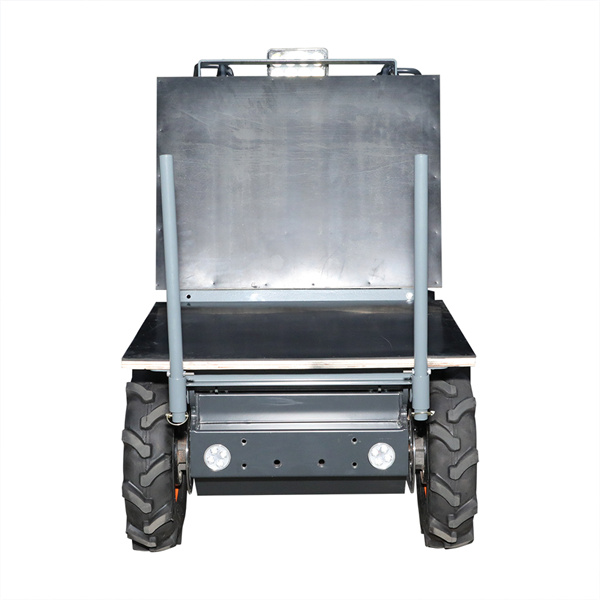

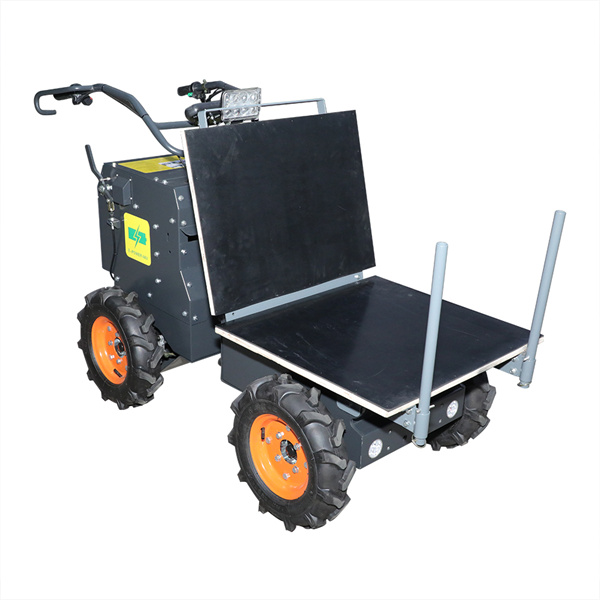

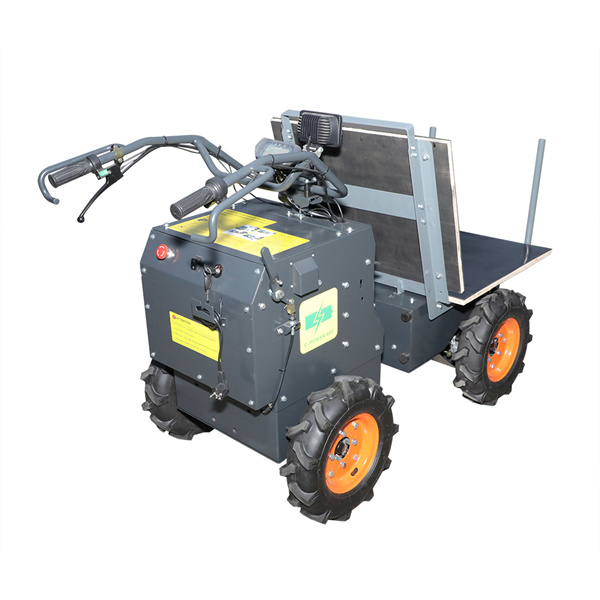

Flat Bed

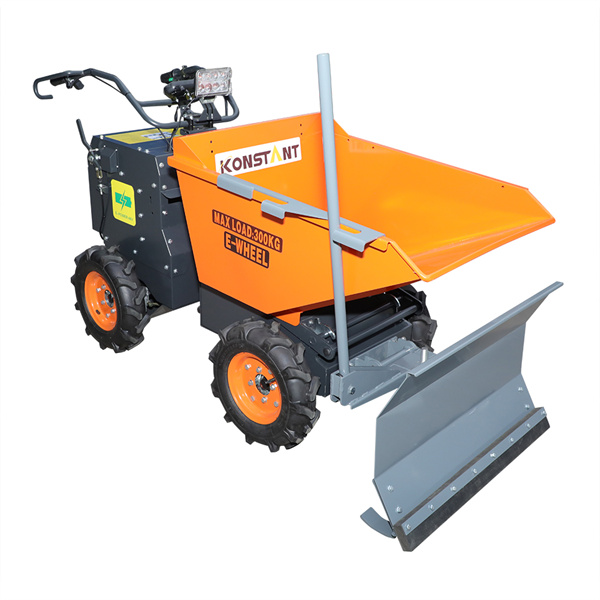

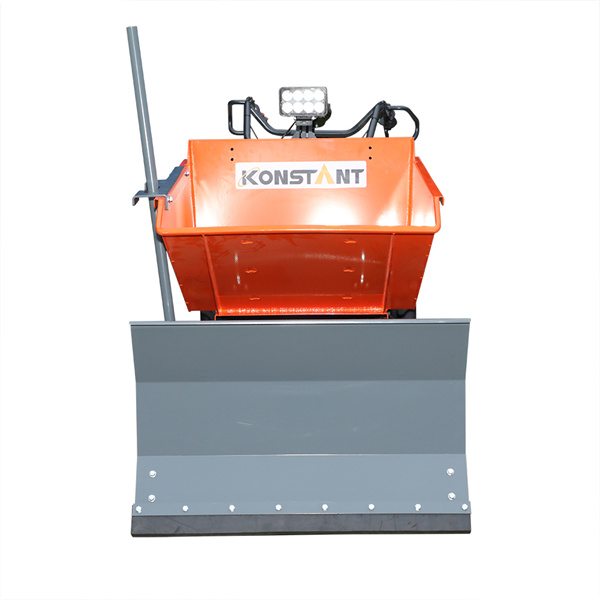

Snow blade

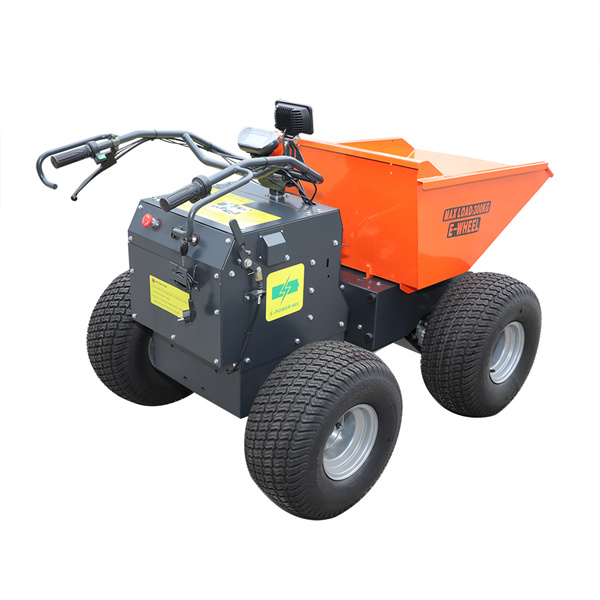

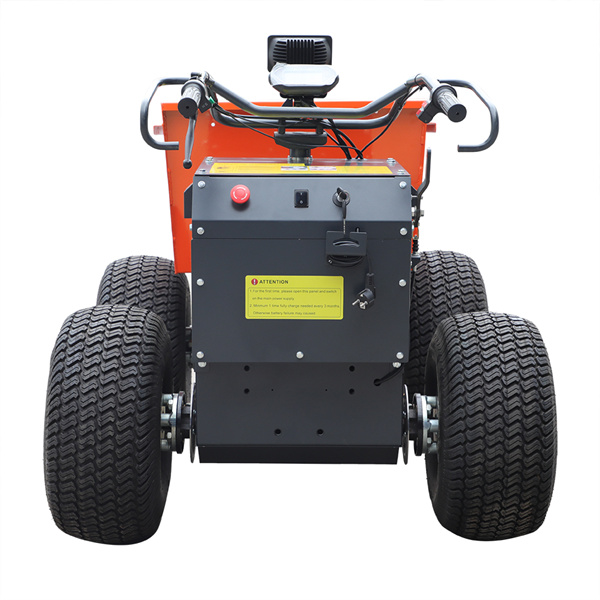

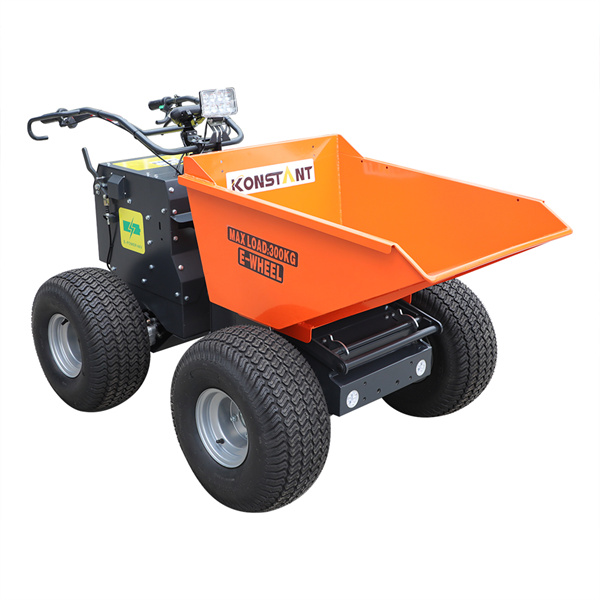

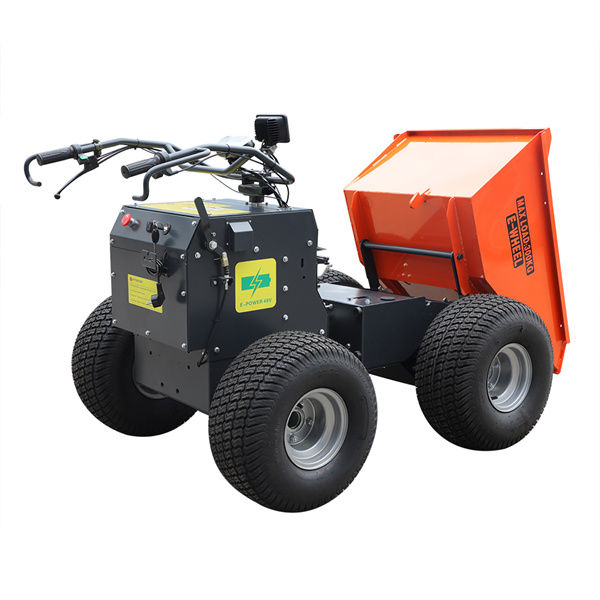

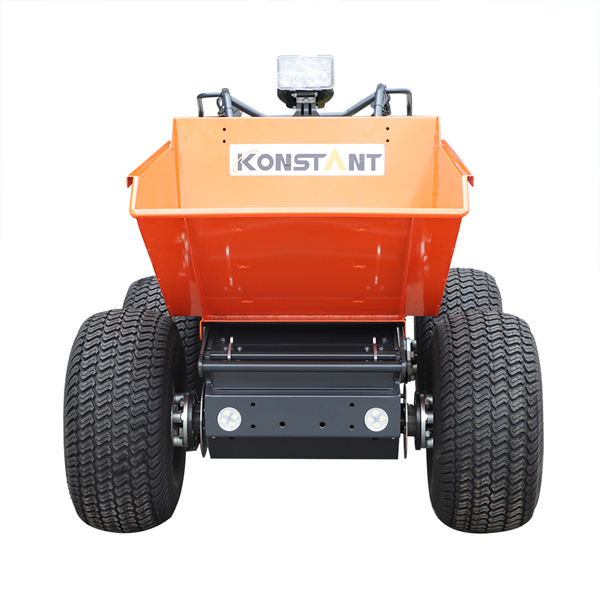

Turf Tyres
