500kg Petrol Power Tracked Barrow Construction Garden Crawler Mini Dumper

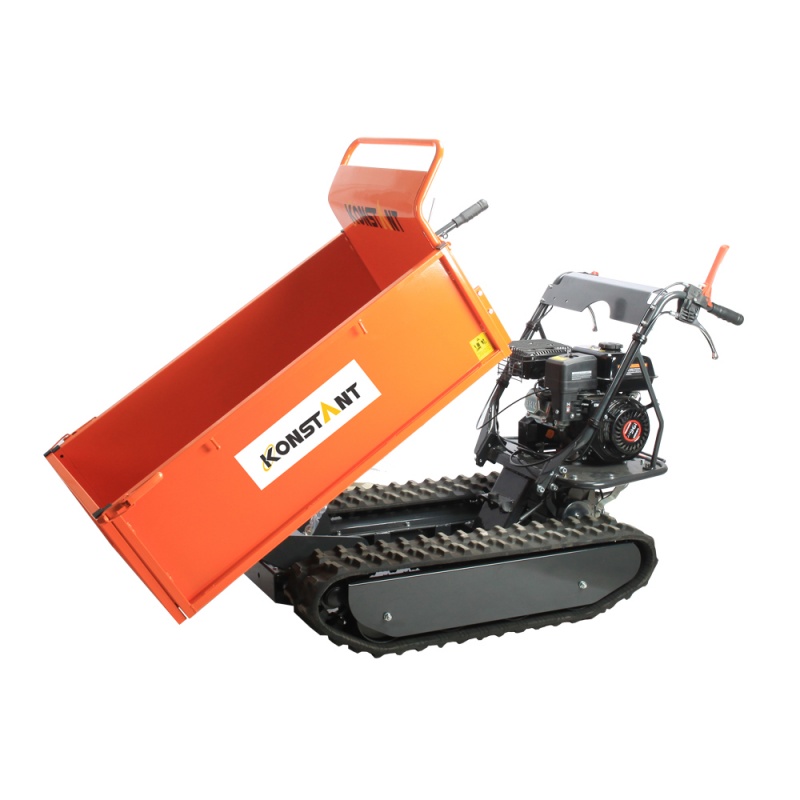

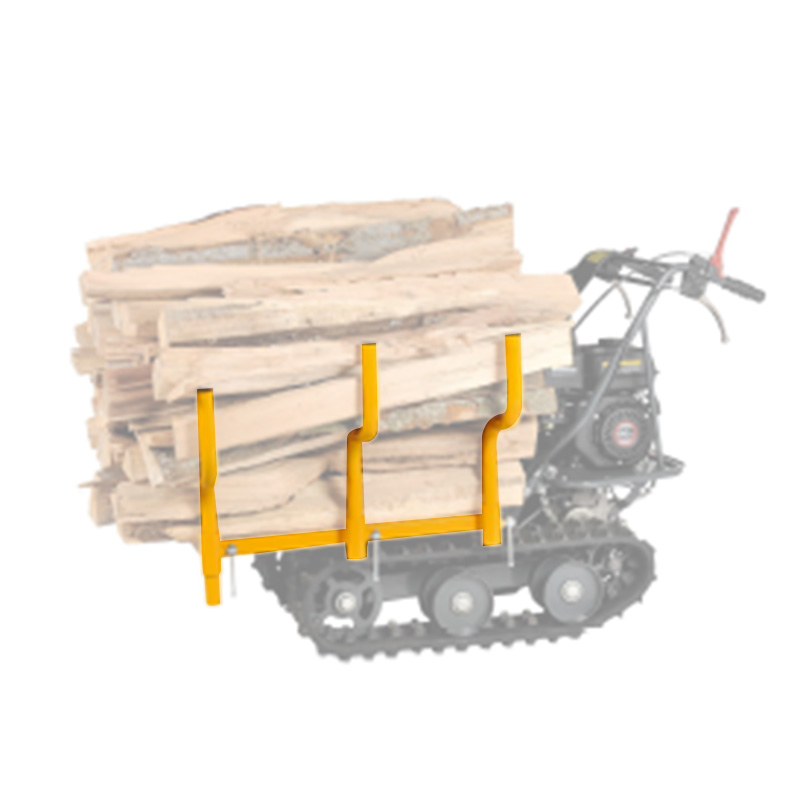

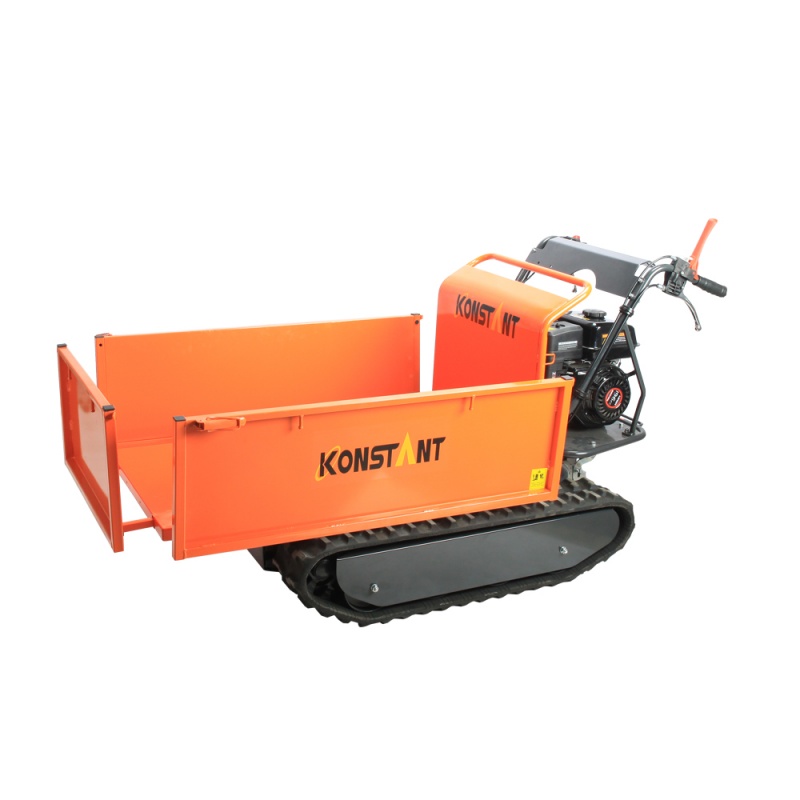

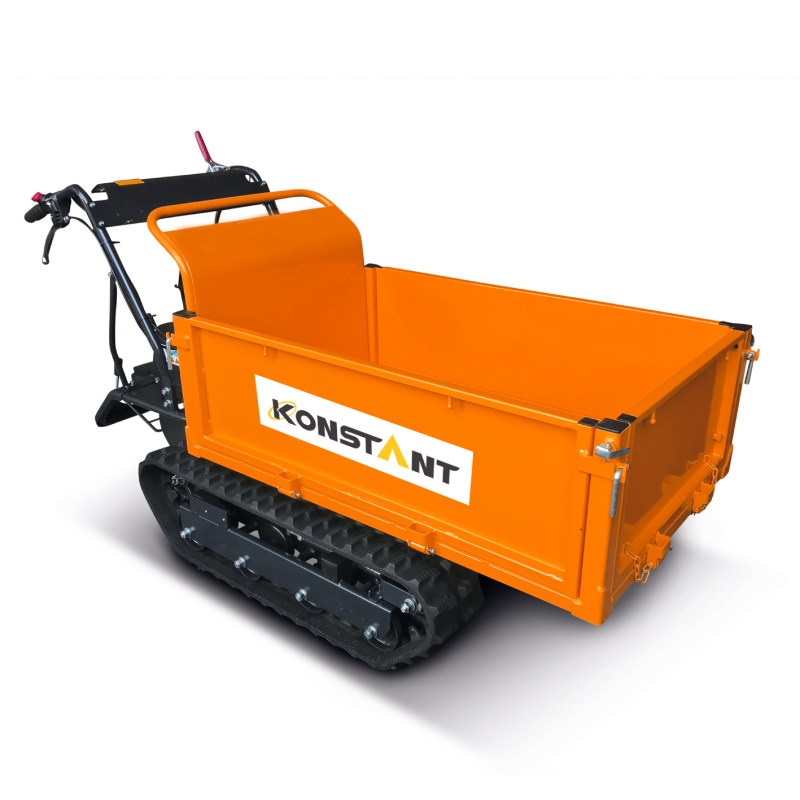

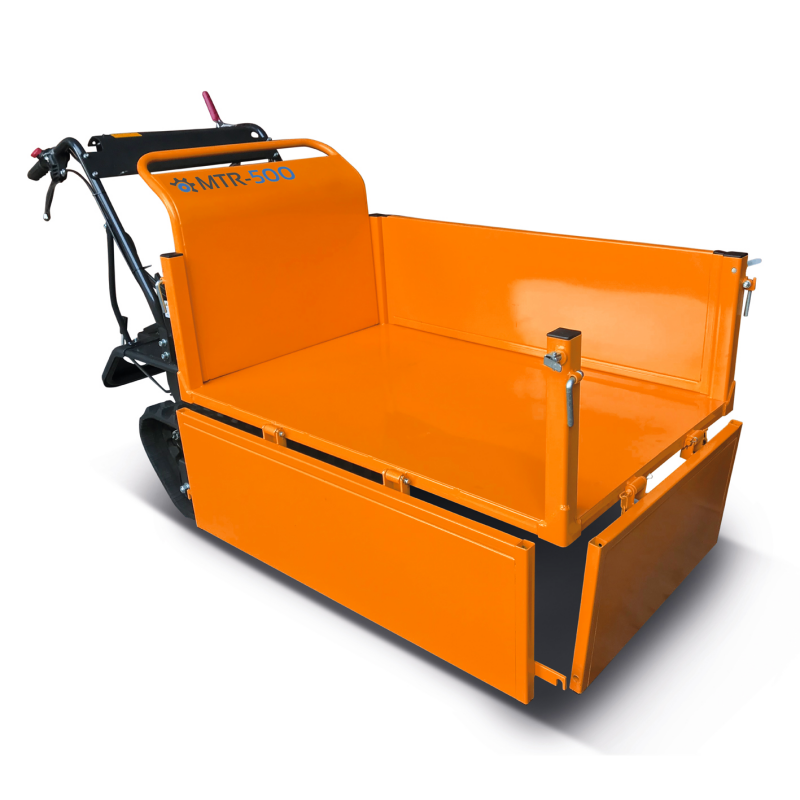

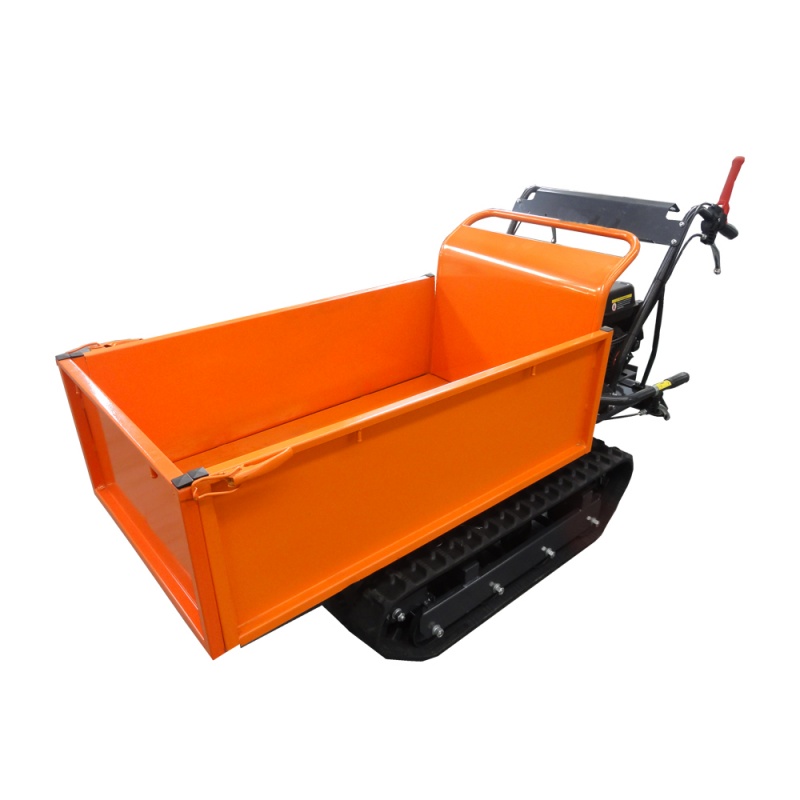

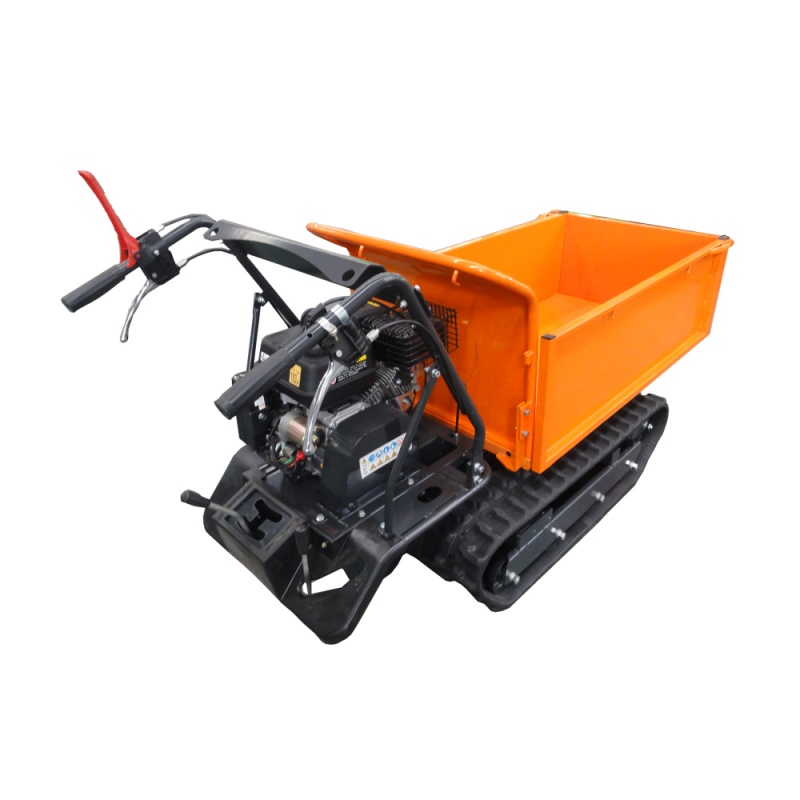

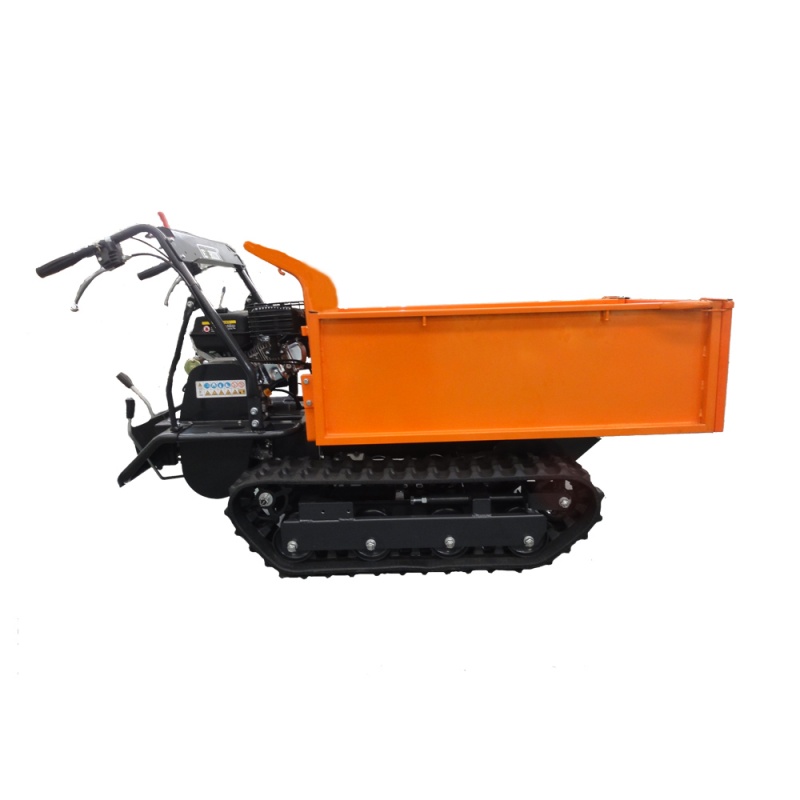

The MD500CLD petrol mini dumper is a compact yet powerful solution for handling various construction and landscaping tasks with ease and efficiency. The easy-starting Loncin G200 196cc engine in combination with the tracks means that no surface is a problem for this KONSTANT mini-tracked dumper type 500CLD. The machine is 74 cm wide and can therefore go through any door or gate! There are two designs of buckets, both expandable and integrated. The bucket sides are expandable on both sides and the front and can be removed if necessary. The loading capacity is 500kg. Tipping the loading platform is done manually and is supported by a gas spring. The track dumper can be equipped with a 3:1 gearbox or a 6:2 gearbox. The difference is that the 6:2 gearbox has high and low-speed gears. You can also install a snow plow or wood transport module. These are the attachments that were not supplied as standard.

  • Parameter
  • Attachment
Model KT-MD500CLD KT-MD500CLD2
Engine LONCIN 270cc LONCIN 270cc

Fuel
Unleaded Petrol Unleaded Petrol
Start
Recoil or Key start

Recoil or Key start
Transmission 3 Forward+1 Reverse 6F+2R(high &low speed)
Driven Crawler Crawler

Loading Capacity
500KG 500KG

BucketSizeIntegrated
1100*720*361mm 1100*720*361mm

Bucket Size Expandable
1240*840*350mm 1240*840*350mm

Speed
0-5.0 km/h 0-7.3 km/h
Tipping Manual with gas spring Manual with gas spring

Track Width
180mm 180mm
Track Length 34*40mm 34*40mm
N.W/G.W 230/255kg 245/285kg
Overall Size 1770*770*952 mm 1770*770*1020 mm

Container Loading(Fixed bucket)

12pcs/20GP 24pcs/40HQ

12pcs/20GP 24pcs/40HQ

ContainerLoading(Expand bucket)

20pcs/20GP 63pcs/40HQ

20pcs/20GP 63pcs/40HQ

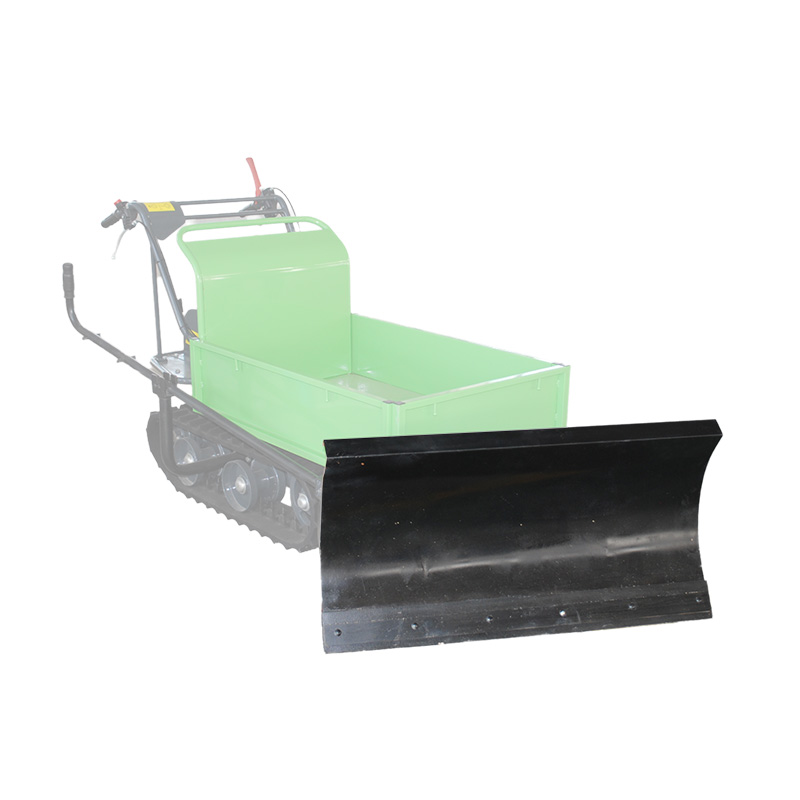

Snow Plough

GUARDRAIL
