Caterpillar Drive Powerful Tipping Hydraulics and Practical Shovel Attached Petrol Powered Mini Crawler Dumper

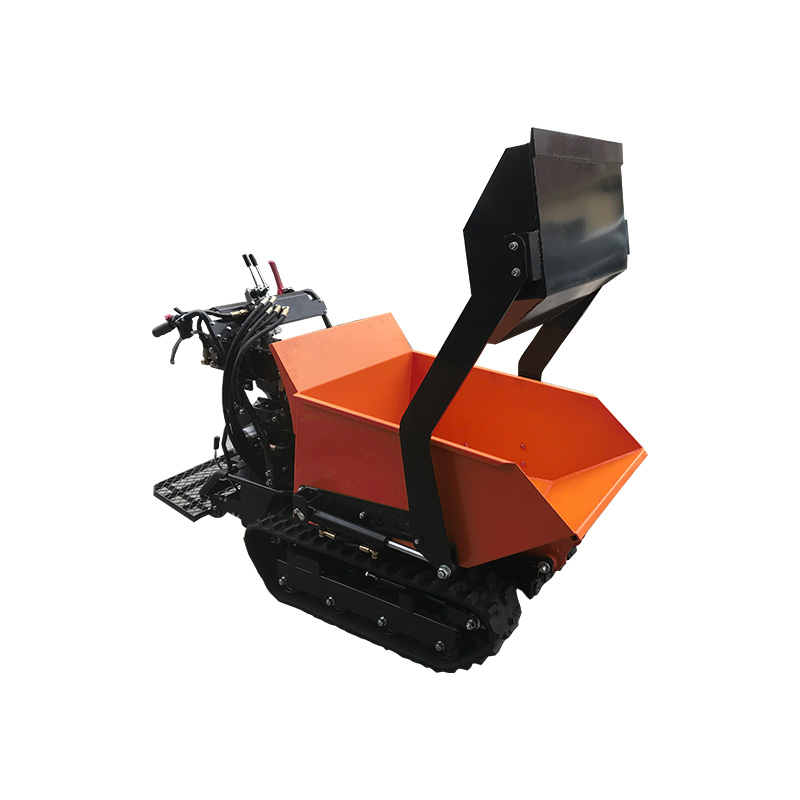

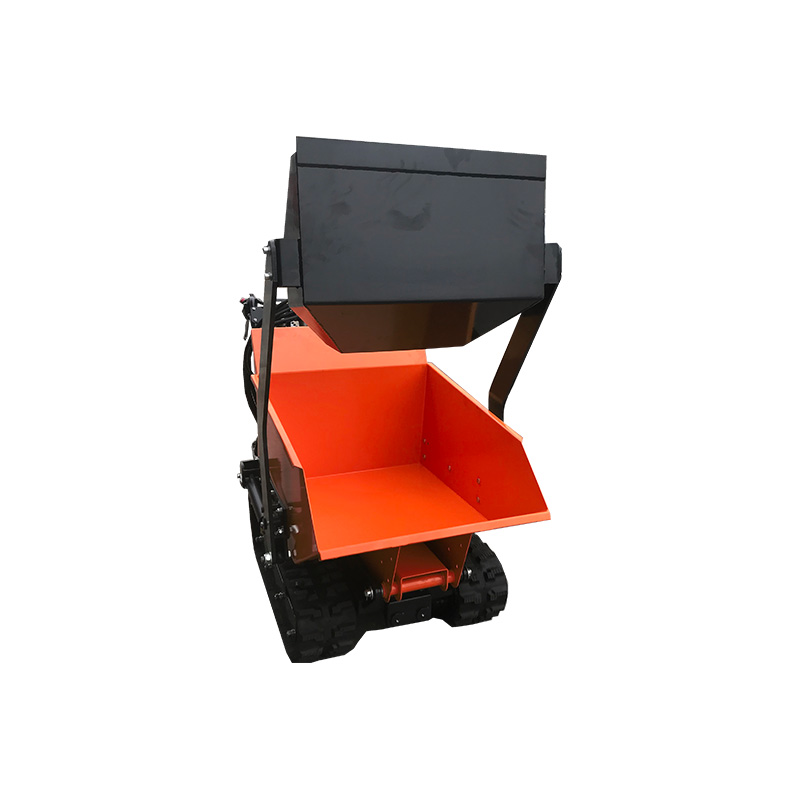

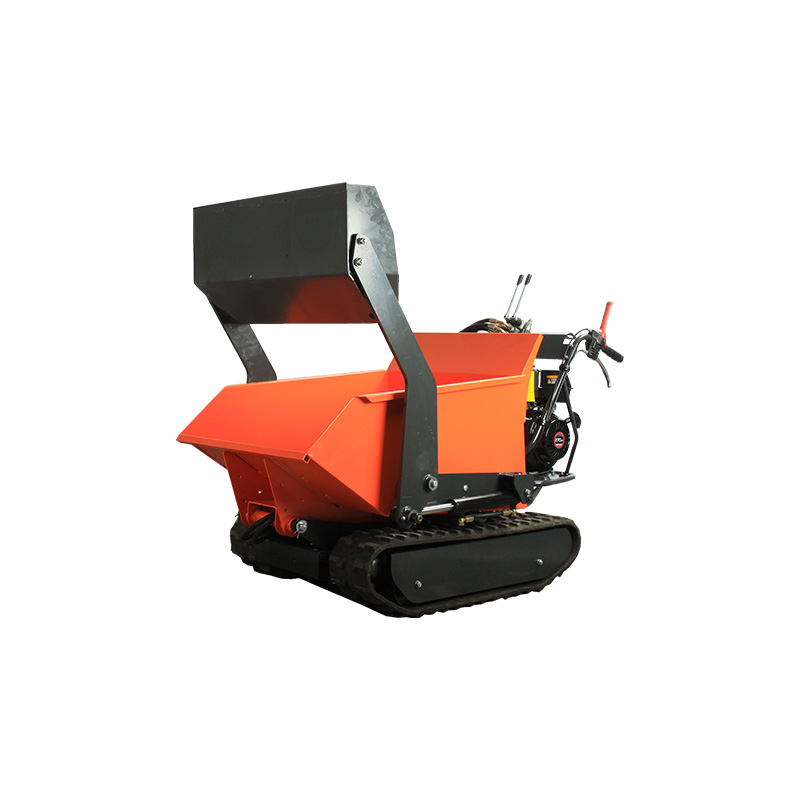

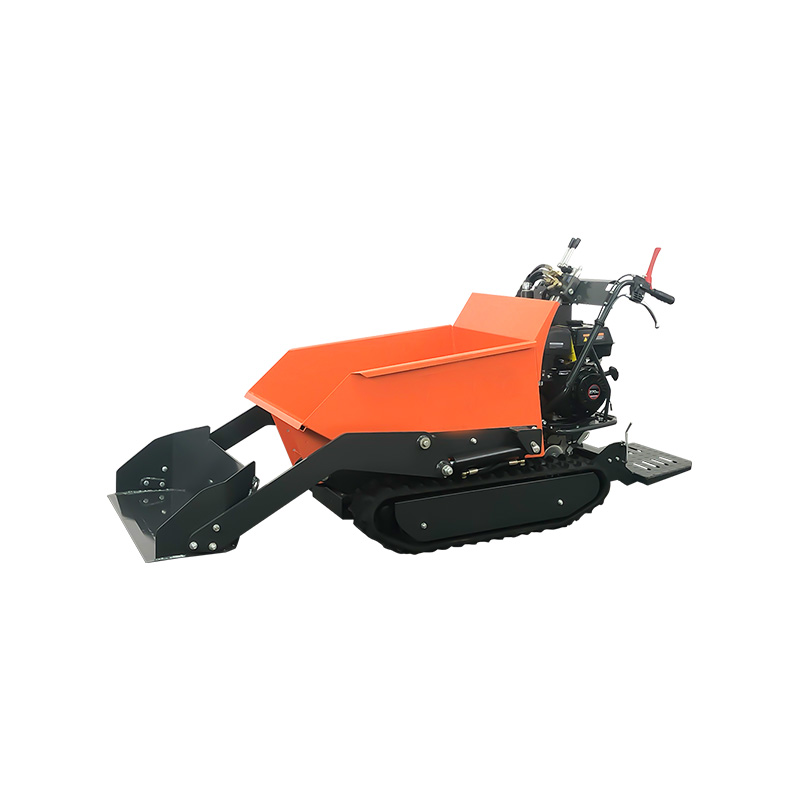

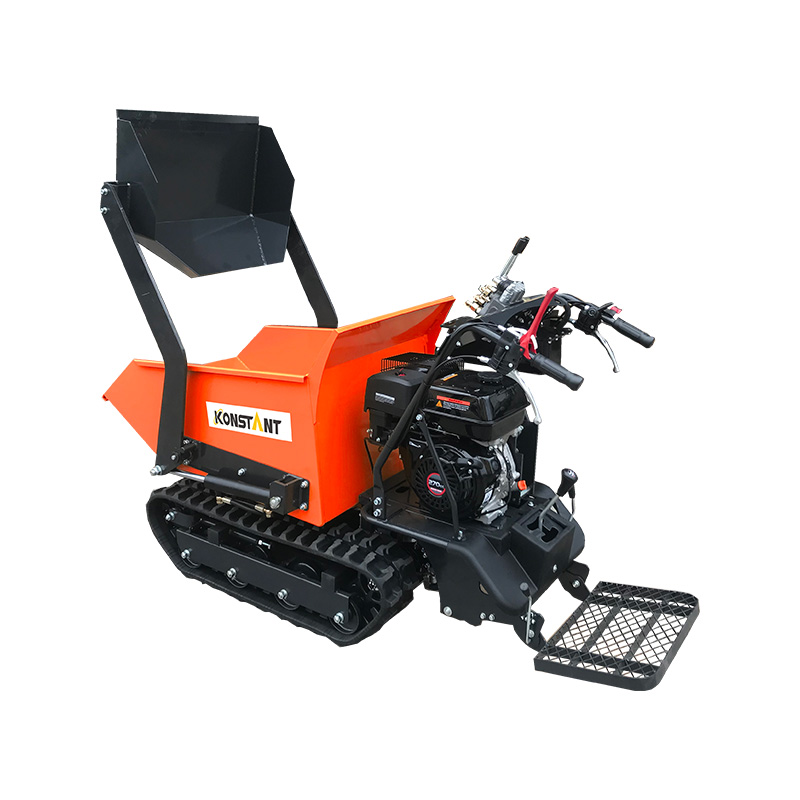

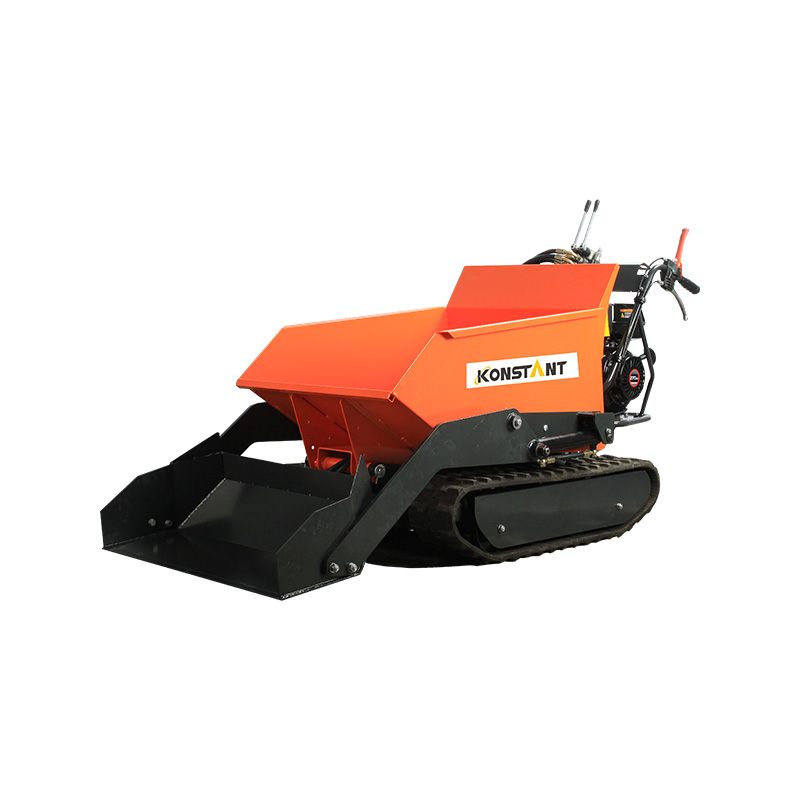

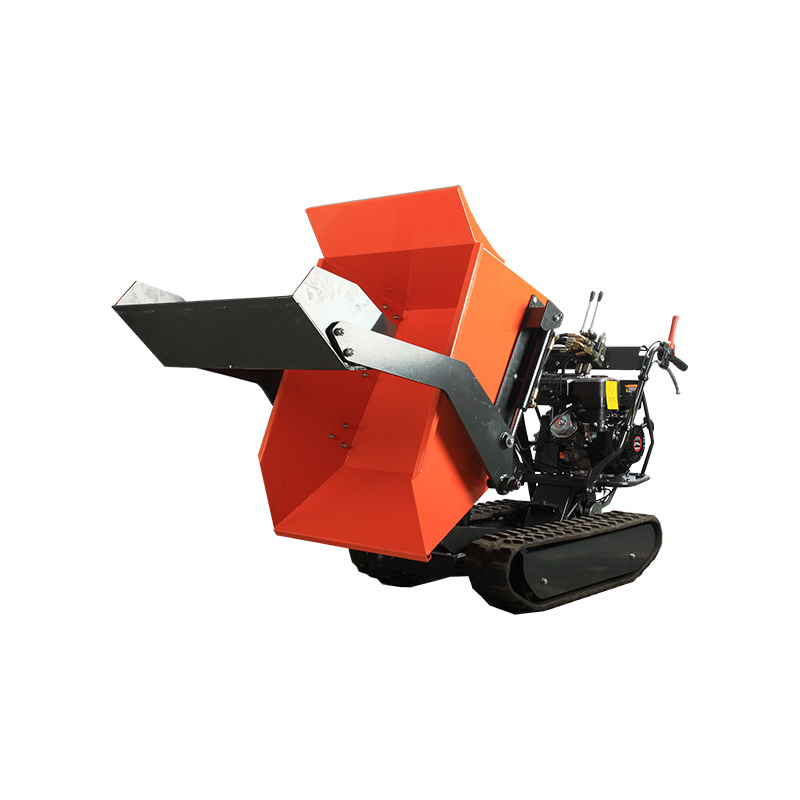

The KONSTANT Powerful Tipping Hydraulics and Practical Shovel attached petrol-powered mini crawler dumper is your reliable companion for transporting heavy loads on construction sites or in the garden. The 9.0 hp engine in combination with caterpillar drive ensures that you can transport your materials on any surface. The tipping of the loading platform is done by means of a hydraulic cylinder. The loading shovel to load the dumper is also hydraulically operated. In addition, this mini-tracked dumper can be equipped with a drive box in 3:1 speed or 6:2 speed. A flat loading platform, snow blade, and wood transport module are also available for this mini dumper.

  • Parameter
  • Attachment
Model MD500CLDHZ MD500CLDH   2Z
Engine LONCIN 270cc LONCIN 270cc
Fuel Unleaded Petrol Unleaded Petrol
Start Recoil or Key start Recoil or Key start
Transmission 3F+1R 6F+2R
Driven Crawler Crawler
Loading Capacity 500kg,375kg@30 degree slop 500kg,375kg@30 degree slop
Bucket Size 1000*700*450mm 1000*700*450mm
Bucket type Integrated Integrated
Shovel Size 350*660*200mm 350*660*200mm

Speed (3:1 transmission)
0-5.0 km/h 0-5.0 km/h

Speed (6:2 transmission)
0-7.3 km/h 0-7.3 km/h
Tipping Hydraulic Hydraulic
Loading Hydraulic Self-loading Hydraulic Self-loading
Track Width 180mm 180mm
Length 34*40mm 34*40mm
N.W/G.W 347/390kg 367/401kg
Overall Size 1700*740*1120mm 1700*740*1120mm
Container Loading 20pcs/20GP;42pcs/40HQ 18pcs/20GP;38pcs/40HQ
