Powerful Engine Drive Heavy Duty Narrow Access design Hydraulic High Tipping bucket and Scissor Lift functionality Robust build Mini Dumper

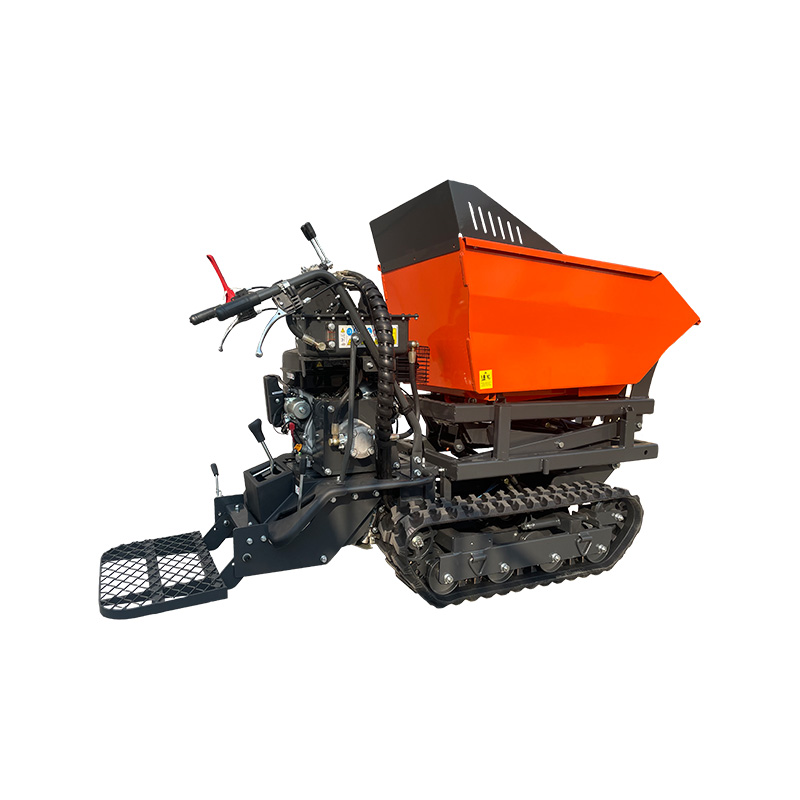

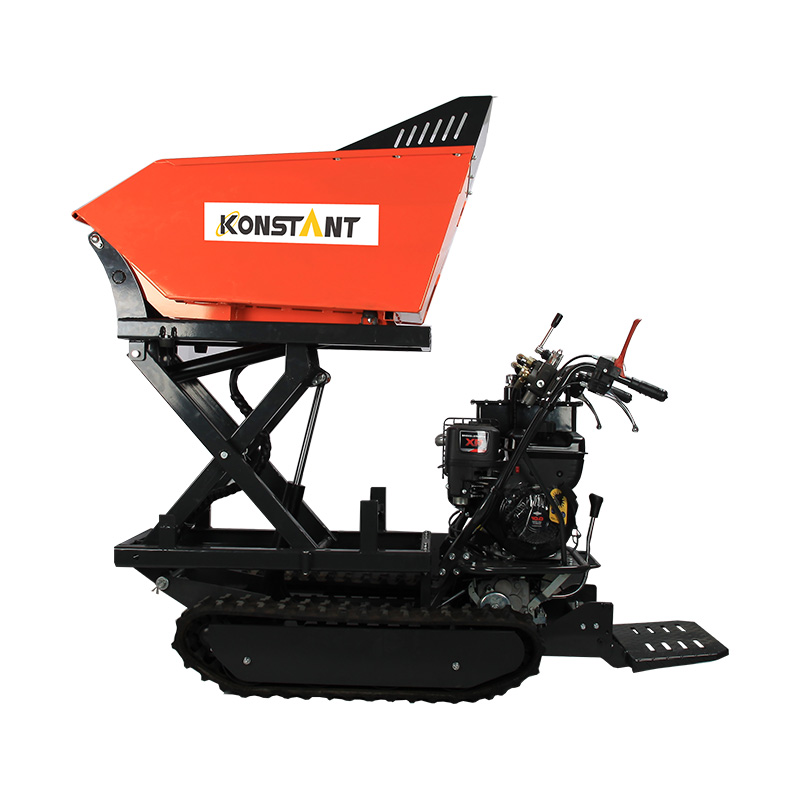

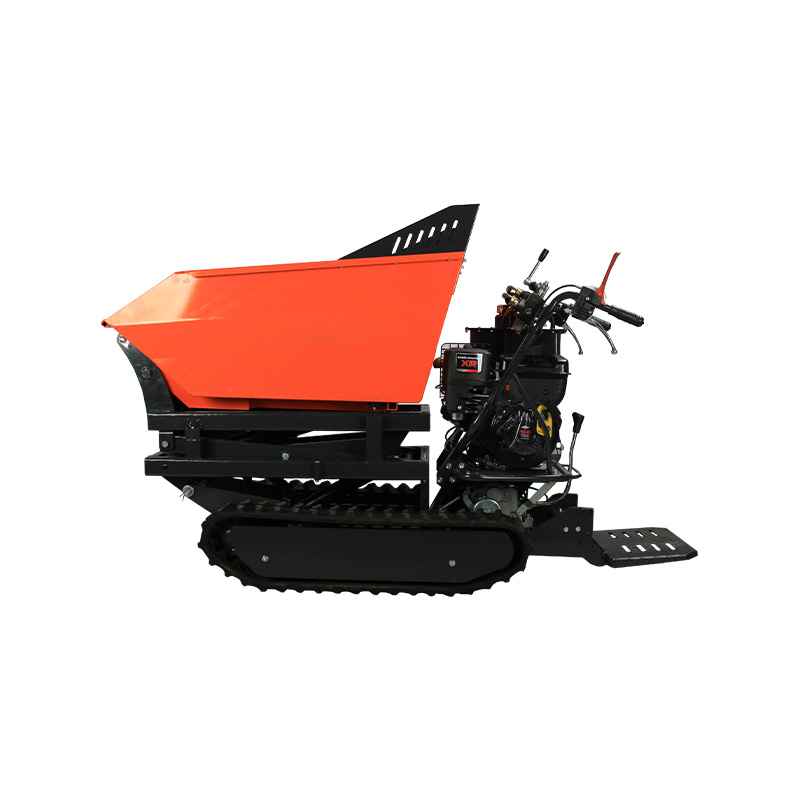

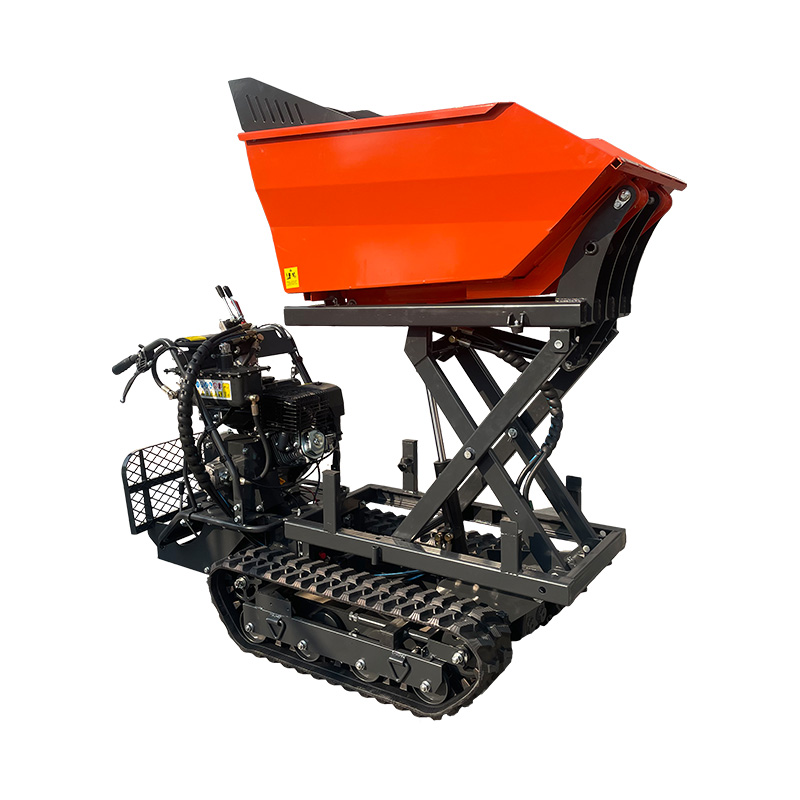

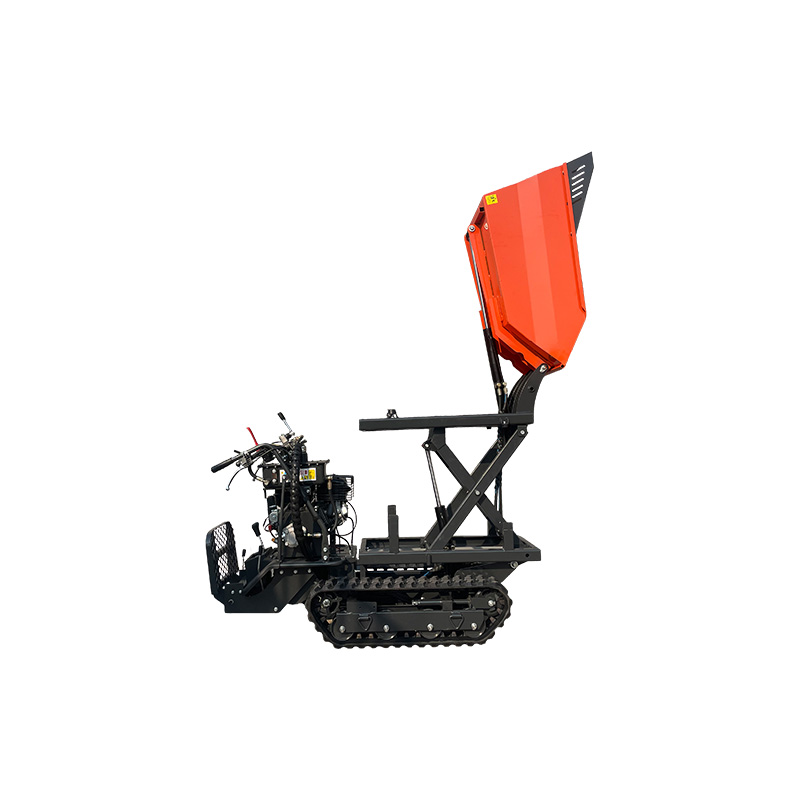

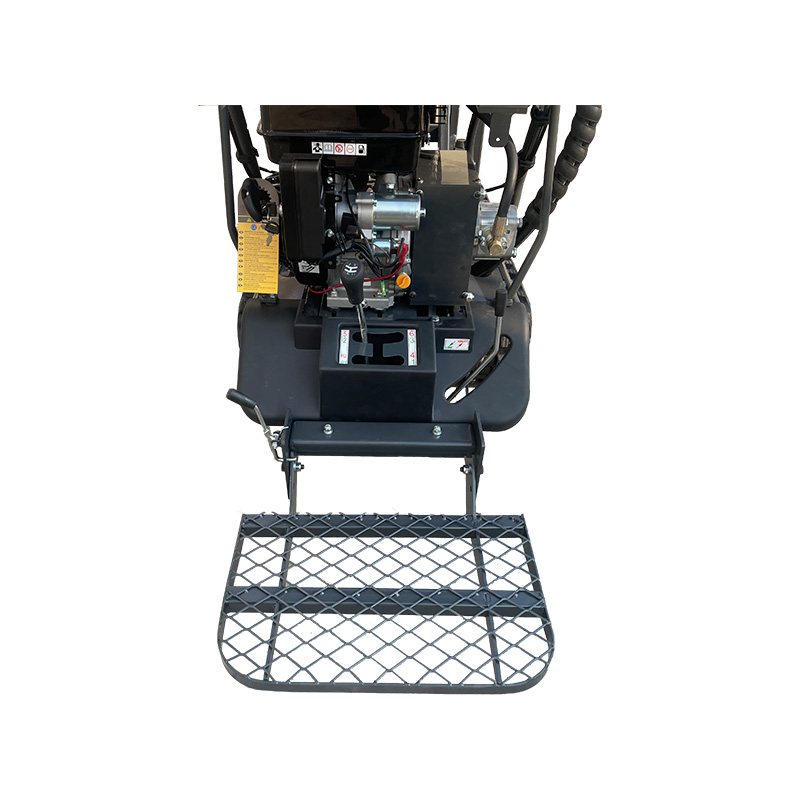

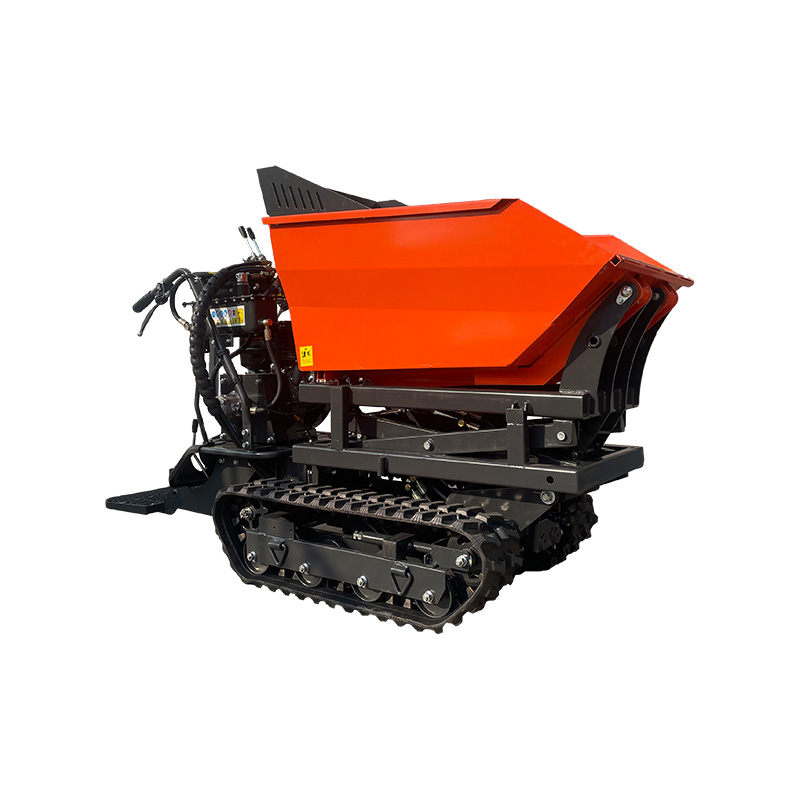

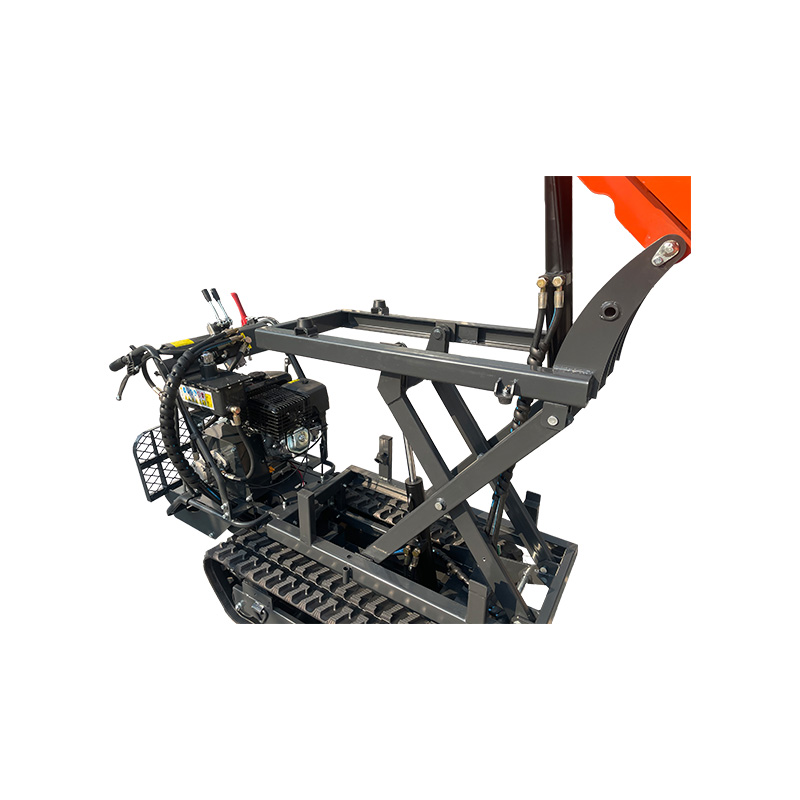

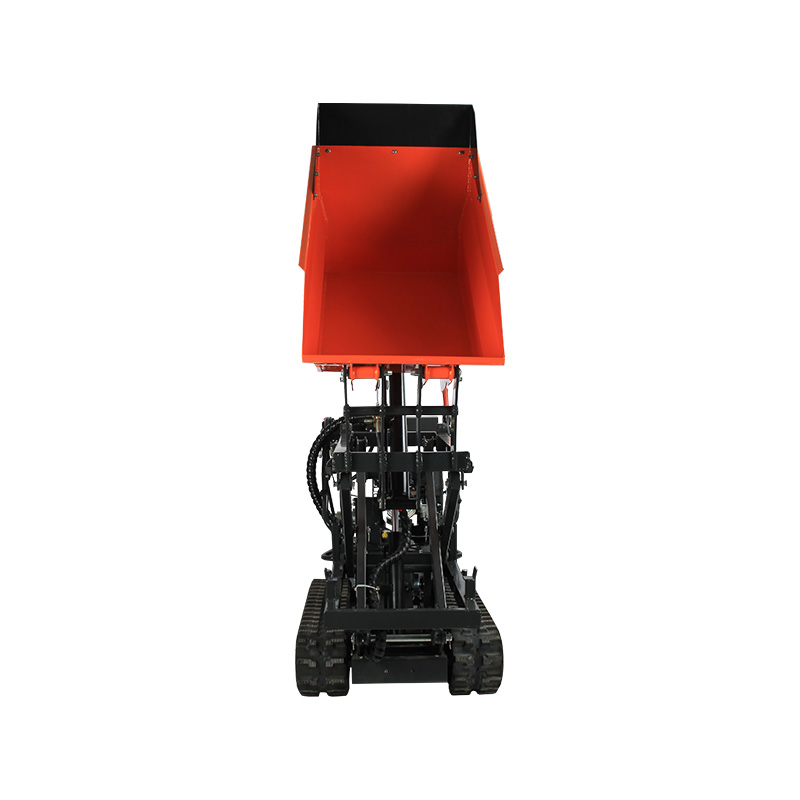

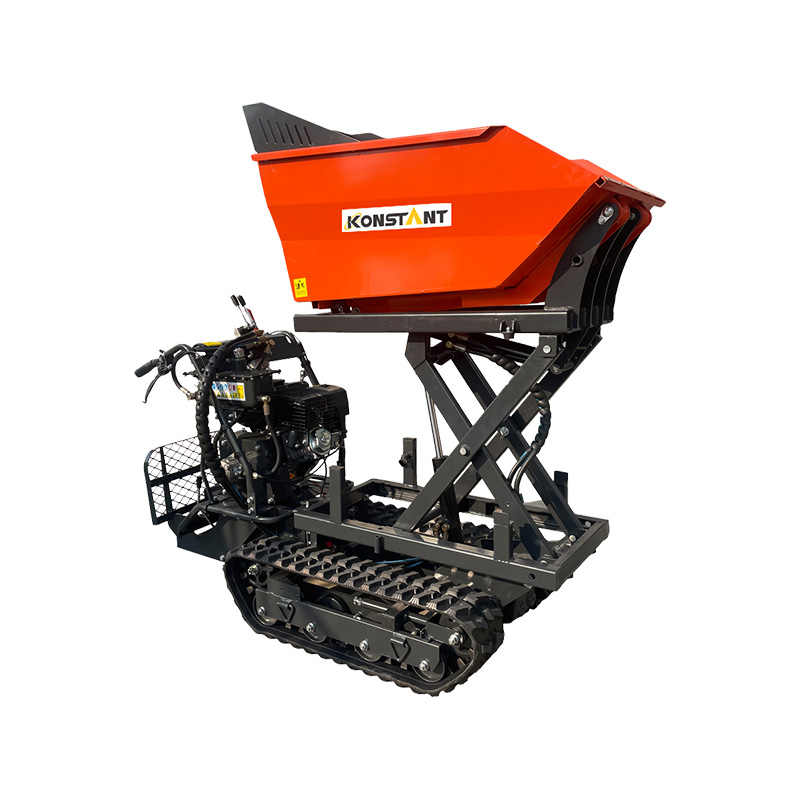

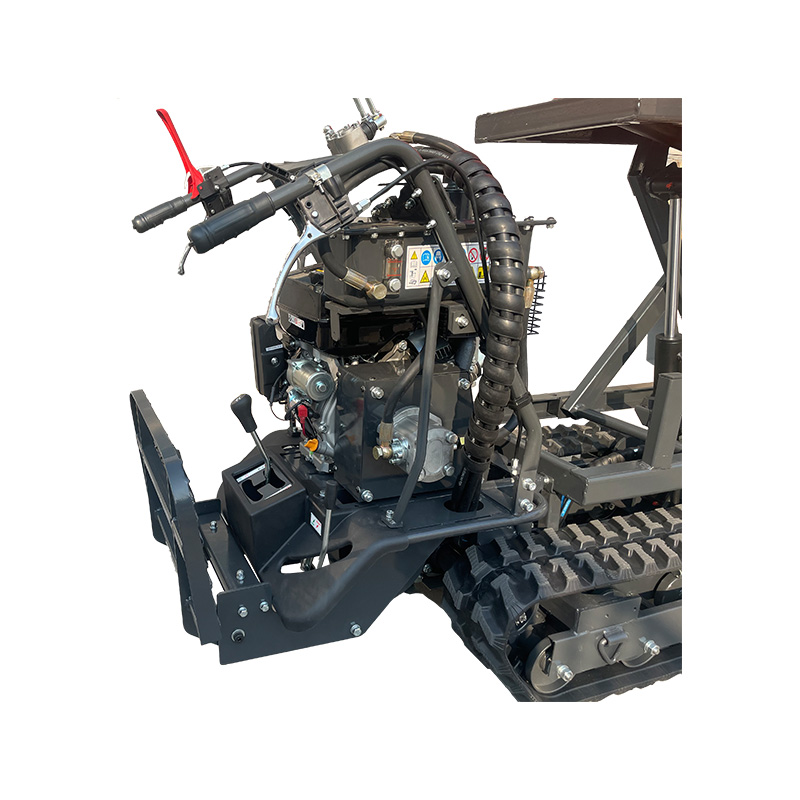

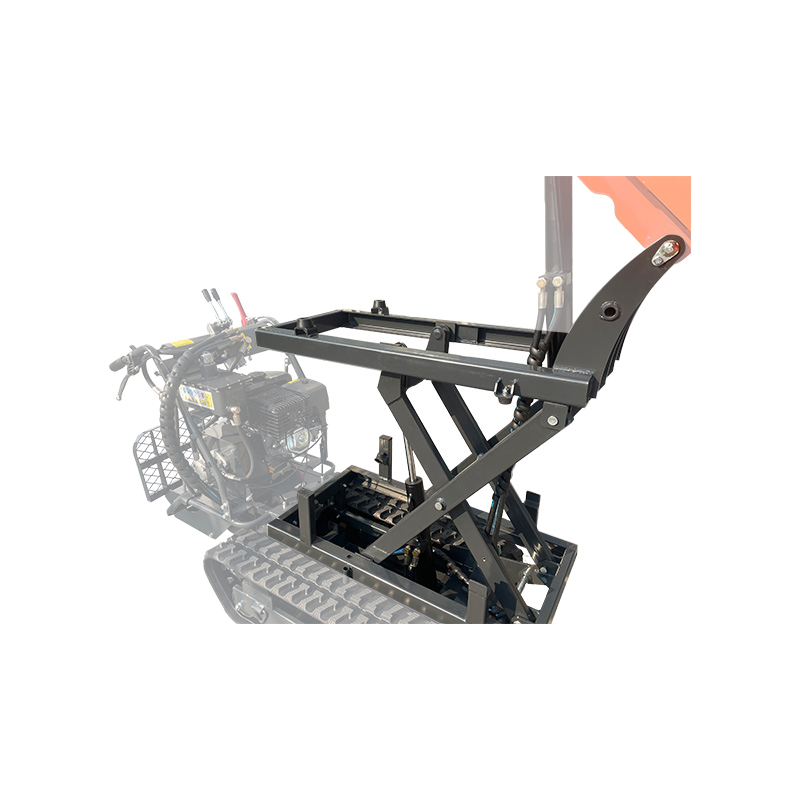

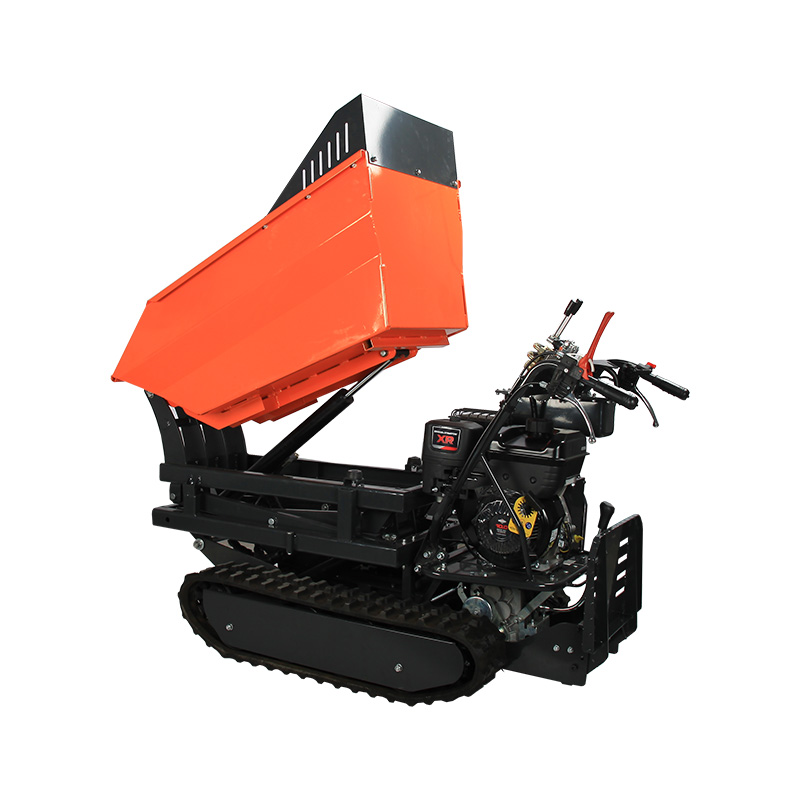

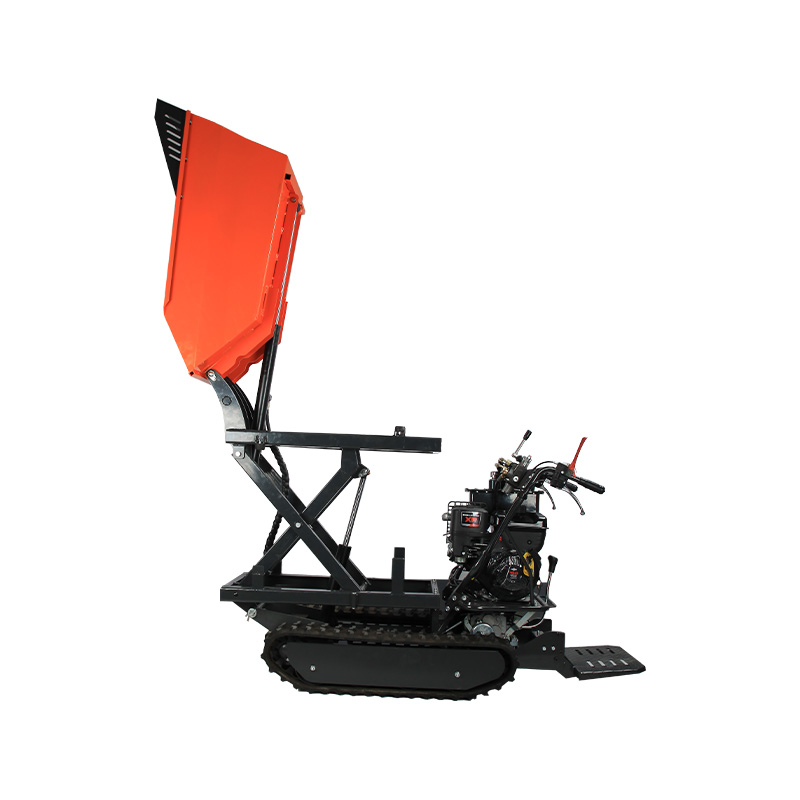

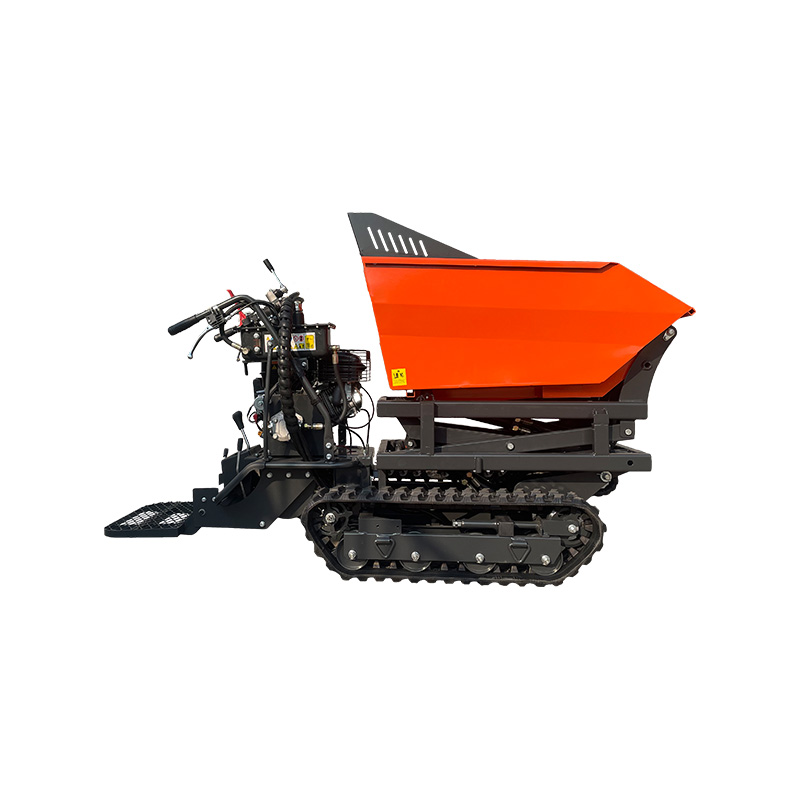

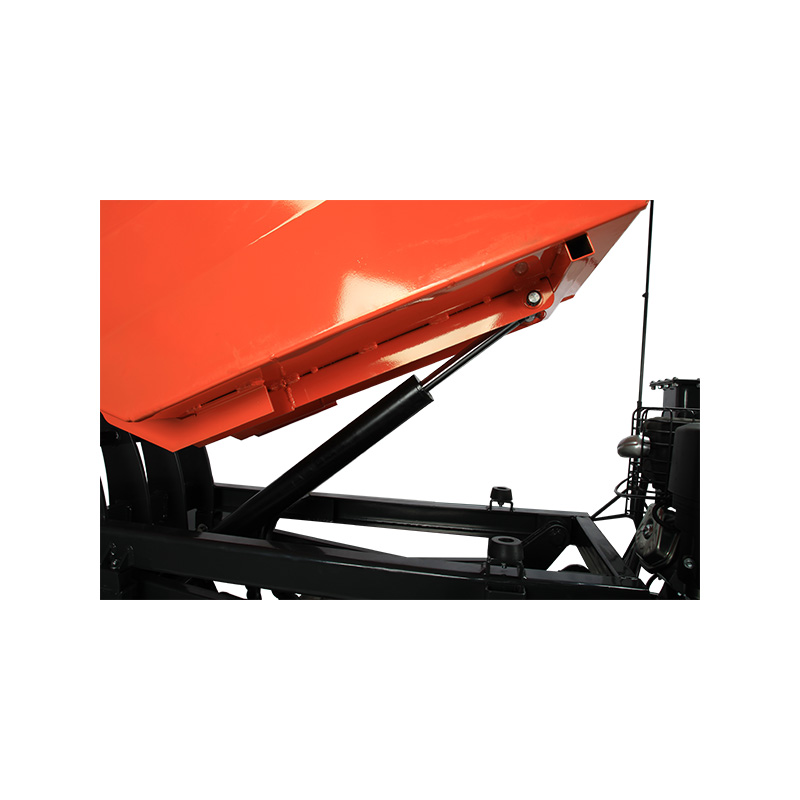

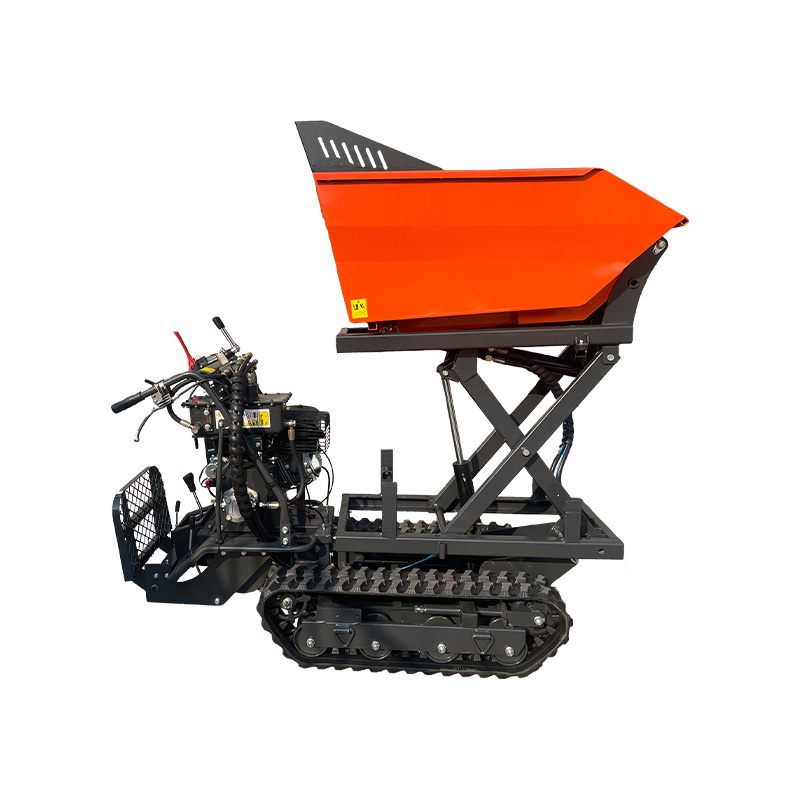

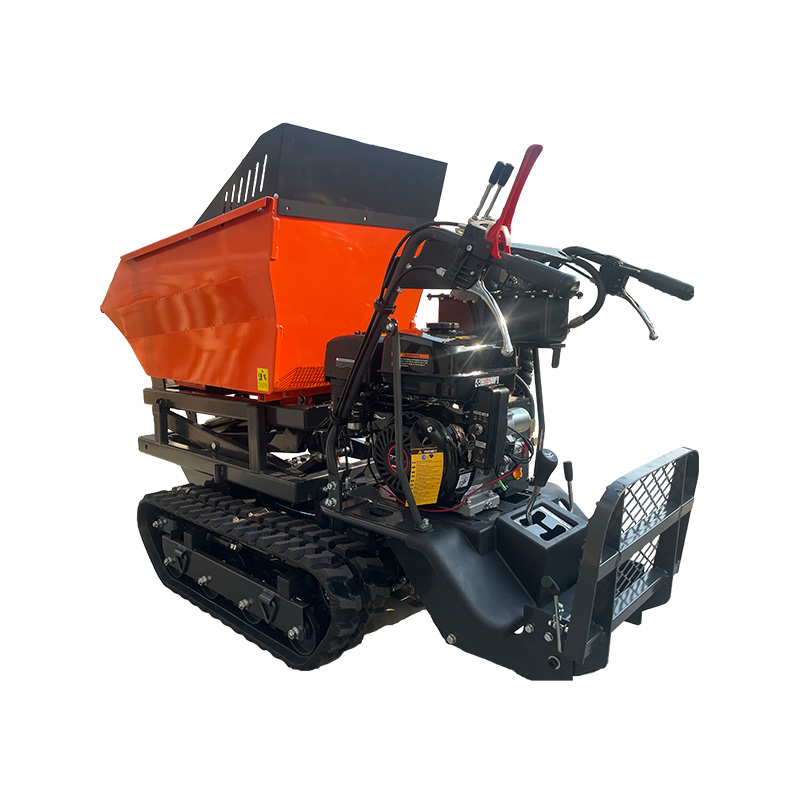

The KONSTANT Powerful engine drives Heavy Duty Narrow Access design Hydraulic Tipping bucket and Scissor Lift functionality Robust build Mini Dumper is a mechanical dumper with a hydraulic tipping and scissor system and equipped with a 9HP Loncin petrol engine. The unique feature of this dumper is the HIGH TIP tipping function in combination with the self-loading scoop. This means that you can empty the tipping bucket at a high level using a hydraulic scissor construction. You can therefore easily tip the bucket onto a truck or into a container. With the loading shove,l you can also load the bucket yourself, for example with sand and gravel. At the back of the machine, there is a platform on which you can stand. The strong and massive construction in combination with a powerful hydraulic pump and an ergonomically developed operating platform make this dumper series the ideal helper.

  • Parameter
  • Attachment
Model KT-MD500CLDHS KT-MD500CLDH    2S
Engine LONCIN 270cc 9HP LONCIN 270cc 9HP
Fuel Unleaded Petrol Unleaded Petrol
Transmission 3F+1R 6F+2R
Steering Steering brake Steering brake
Tipping &Lifting Hydraulic Hydraulic
Lifting height 140cm 140cm
Loading Capacity 500KG 500KG
Bucket Size 1000*700*450mm 1000*700*450mm
Track Width 180mm 180mm
Speed 0-5.0 km/h 0-7.3 km/h
Ground Clearance 110mm 110mm
N.W/G.W 360/400kg 395/420kg
Overall Size 1780*760*1135mm 1820*760*1205mm

Container Loading
20GP:18pcs,40HQ:36pcs 20GP:9pcs,40HQ:36pcS
