Customized Self Loading 9.0HP Power Hydraulic System Construction Crawler Mini Dumper

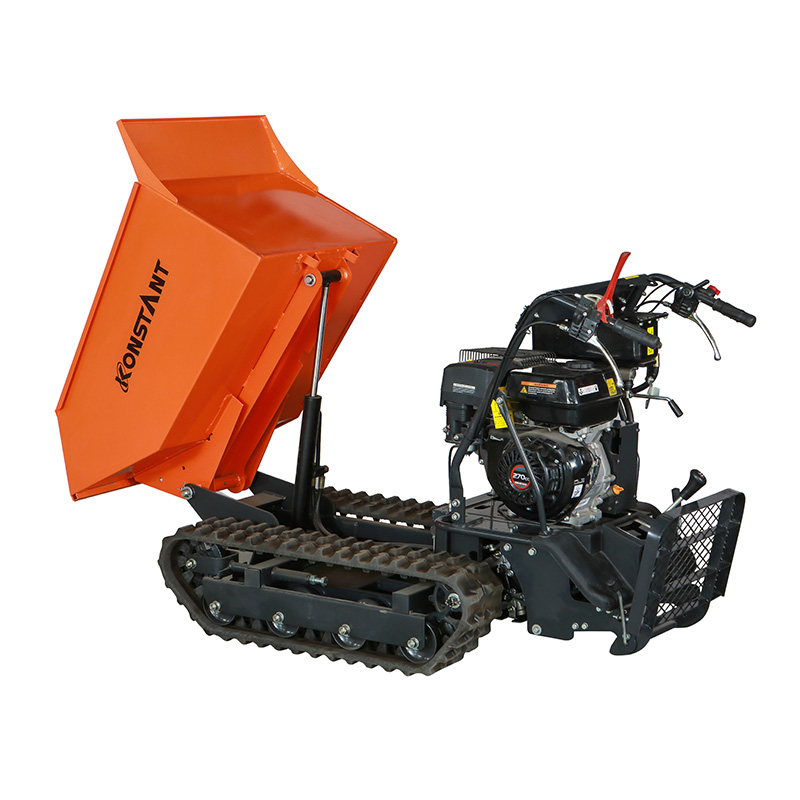

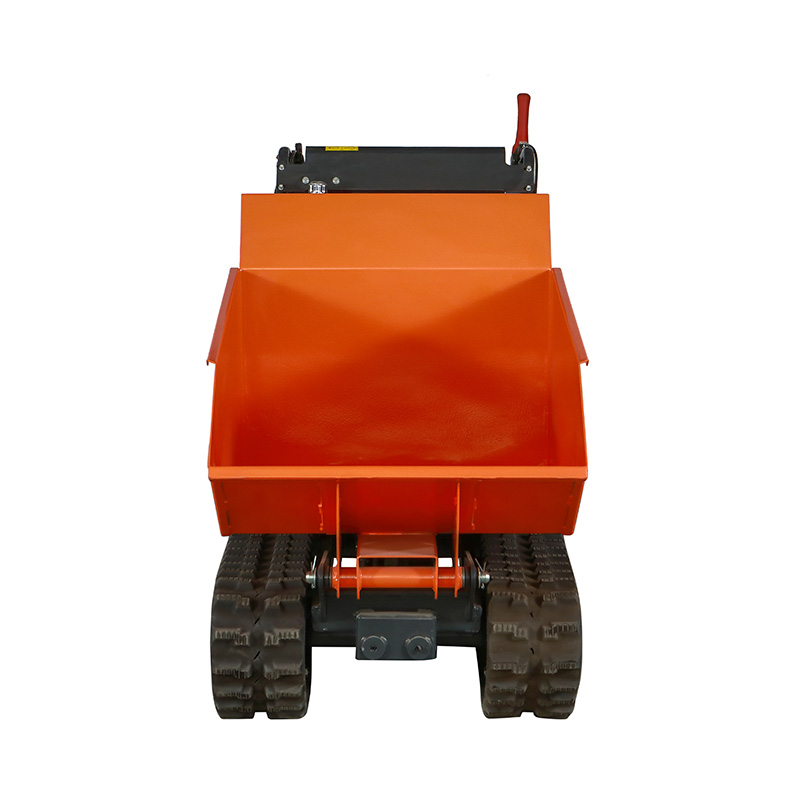

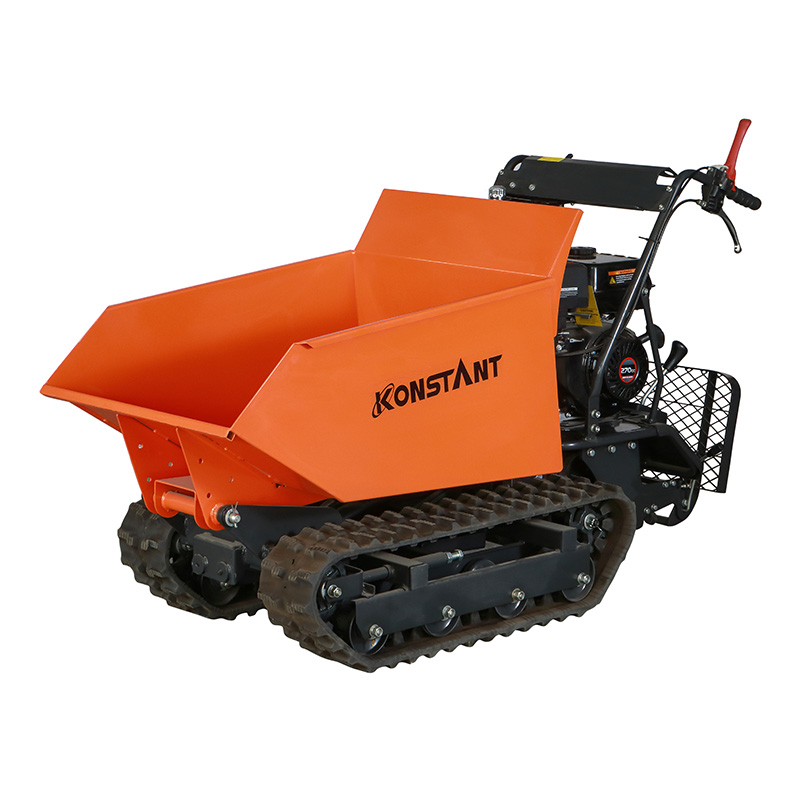

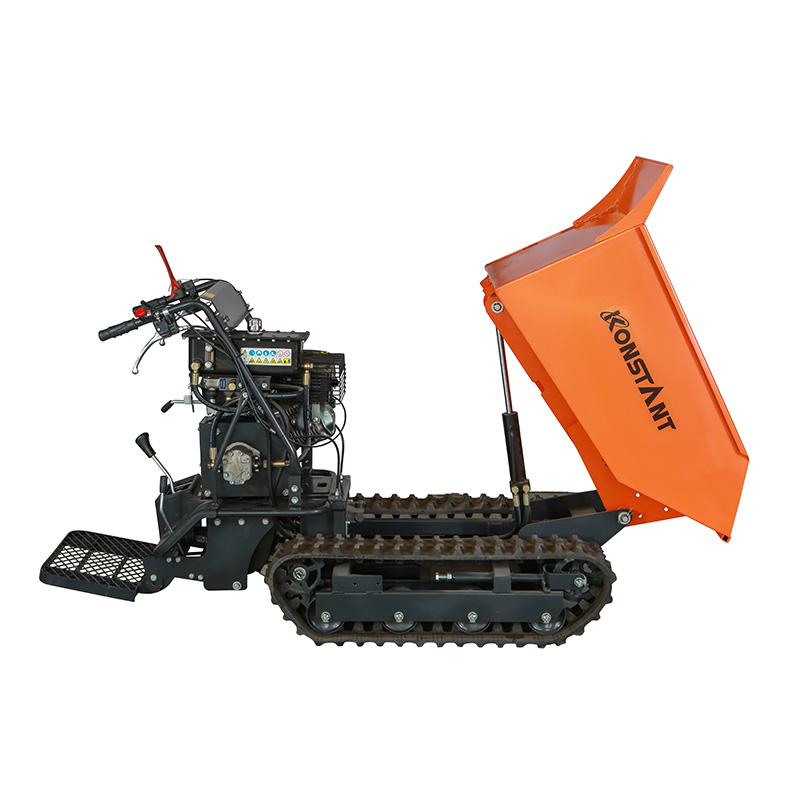

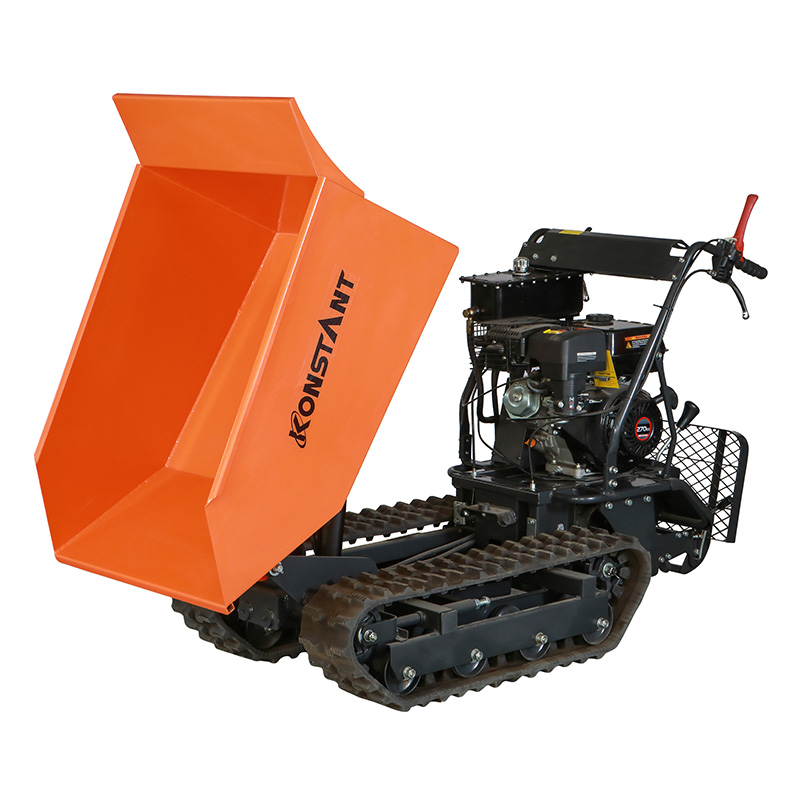

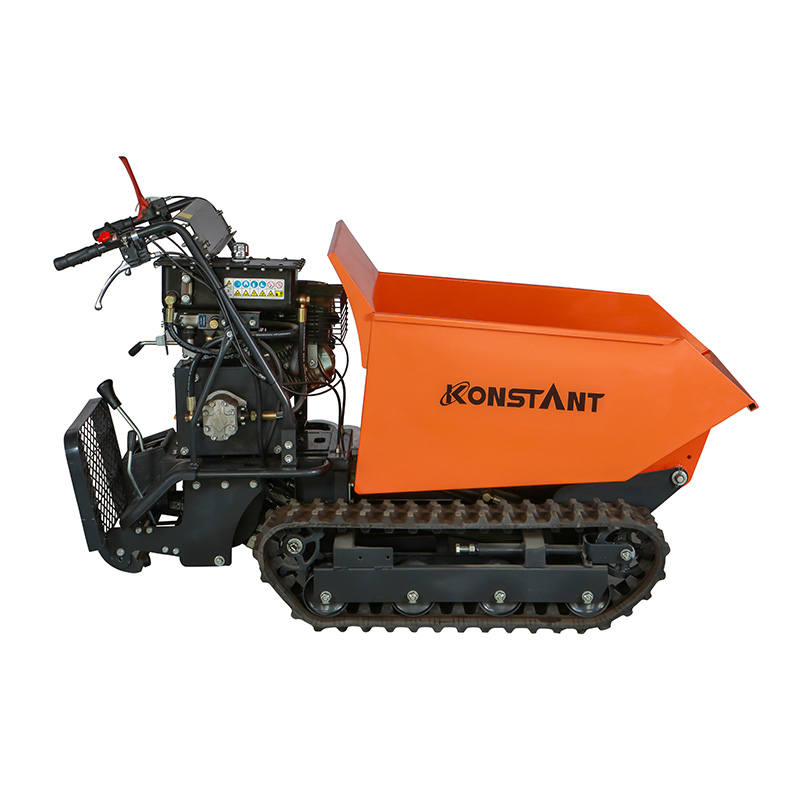

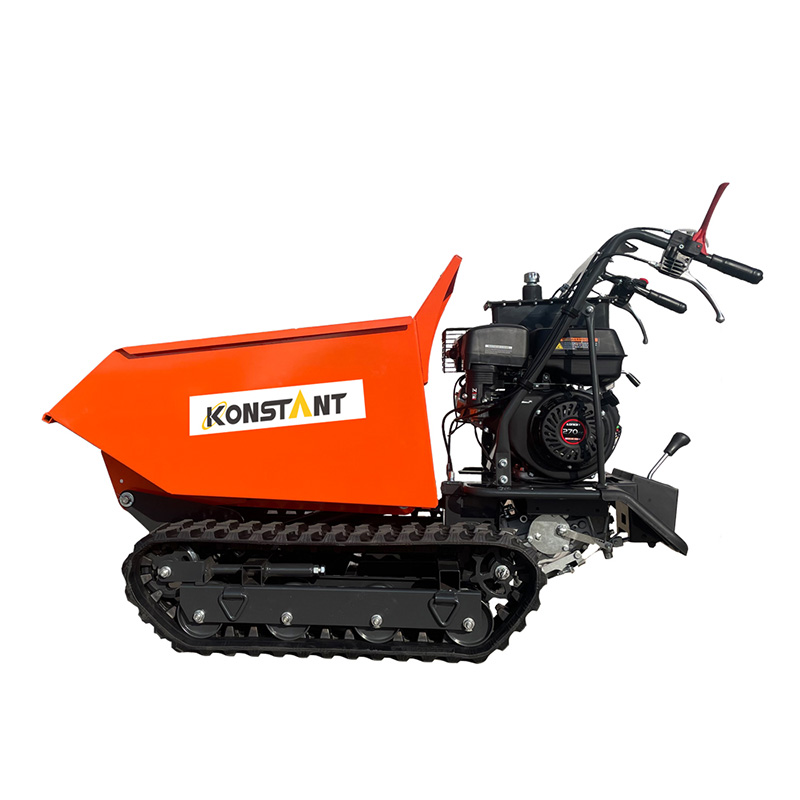

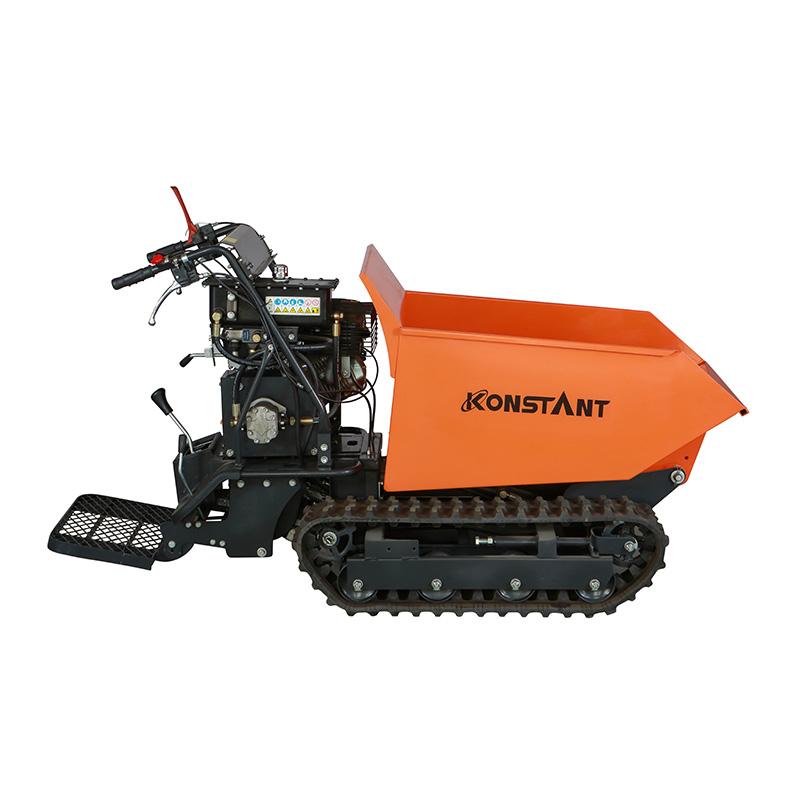

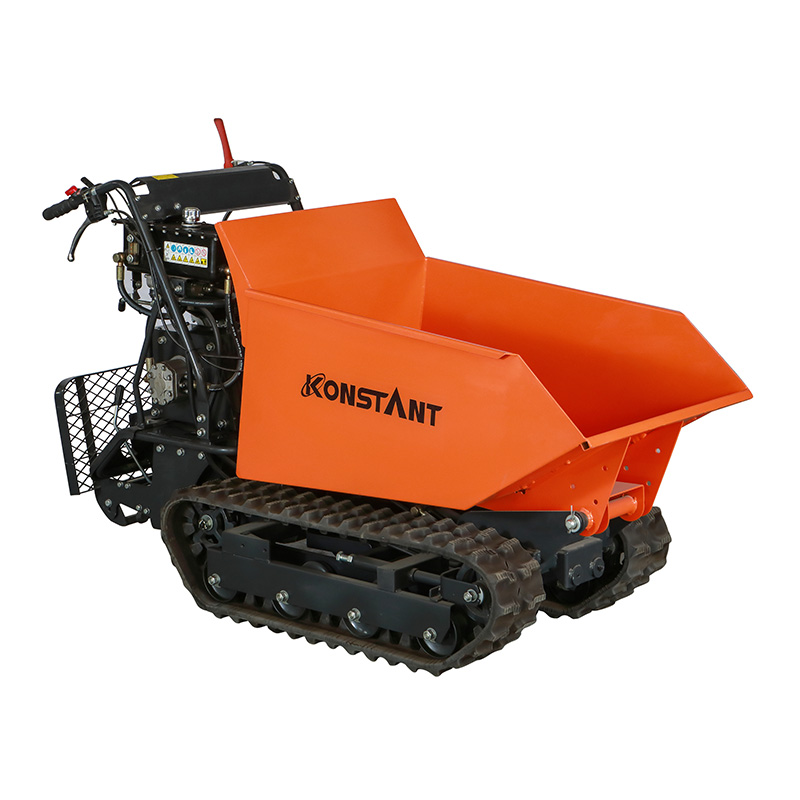

The KONSTANT customized Self loading 9.0HP Power Hydraulic System Construction Crawler Mini dumper  has a 9 HP petrol engine which can be recoil start or electric start. The crawler dumper is self-propelled and the skip can be tipped. A hydraulic unit and a hydraulic cylinder have been built onto the machine to facilitate this. Both 3:1 and 6:2 transmissions are available. Thanks to its versatile design, the MDCLDH can be fitted with a range of optional attachments and accessories, allowing you to customize it to suit your specific needs.

  • Parameter
  • Attachment
Model MD500CLDH MD500CLDH2
Engine LONCIN 270cc LONCIN 270cc
Fuel Unleaded Petrol Unleaded Petrol
Start Recoil or Key start Recoil or Key start
Transmission 3F+1R 6F+2R
Driven Crawler Crawler
Loading Capacity 500kg,375kg@30 degree slop 500kg,375kg@30 degree slop

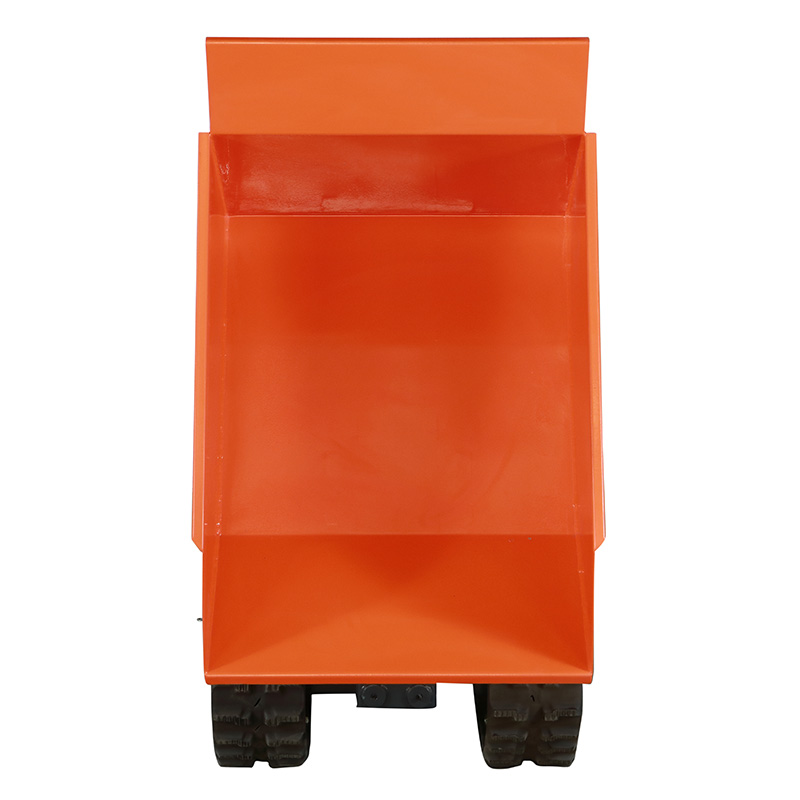

Bucket Size 1000*700*450mm 1000*700*450mm
Bucket type Integrated Integrated
Speed (3:1 transmission) 0-5.0 km/h 0-5.0 km/h
Speed (6:2 transmission) 0-7.3 km/h 0-7.3 km/h
Tipping Hydraulic Hydraulic
Track Width 180mm 180mm
Track Length 34*40mm 34*40mm
N.W/G.W 280/350kg
284/314kg
Overall Size 1700*715*952mm 1700*715*1100mm
Container Loading 20pcs/20GP,42pcs/40HQ 18pcs/20GP,38pcs/40HQ

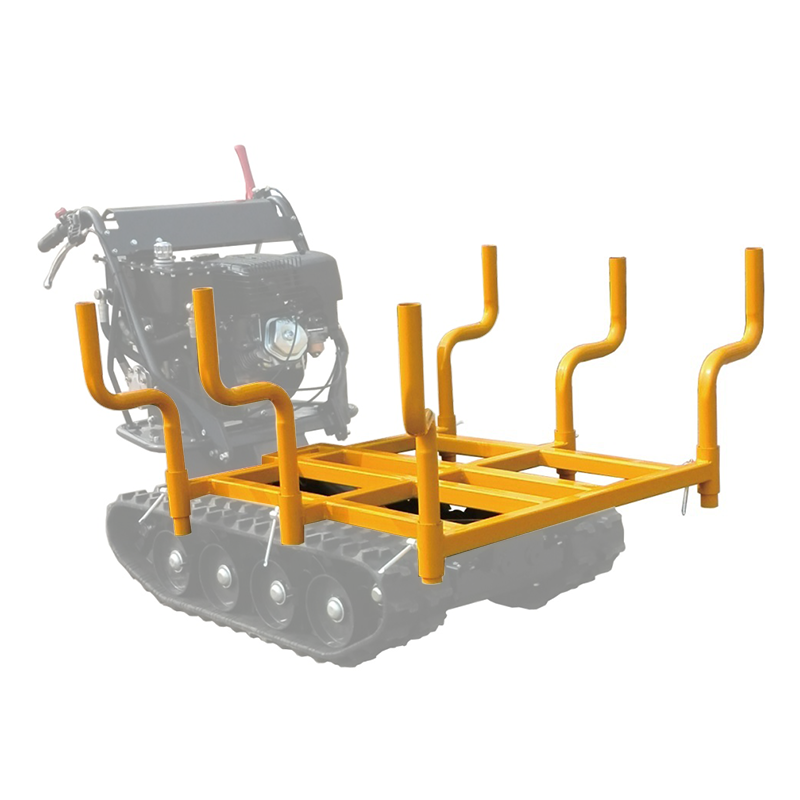

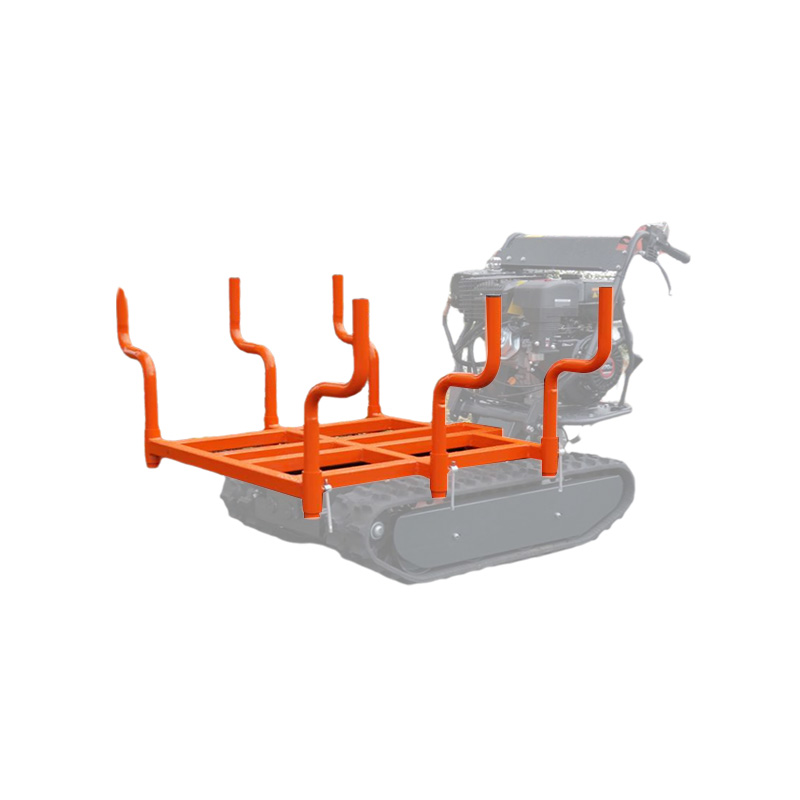

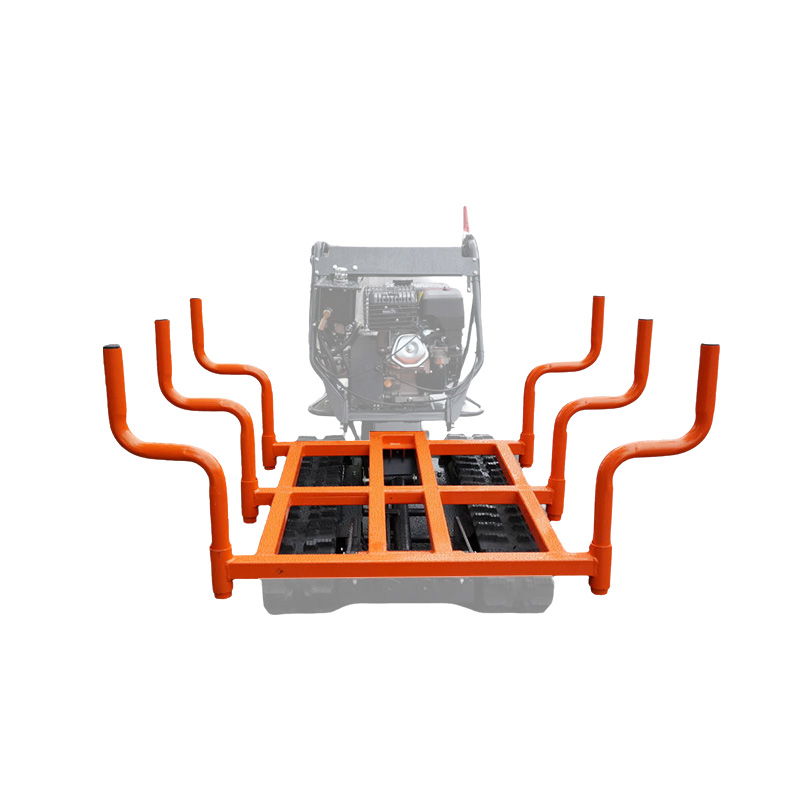

Log Frame

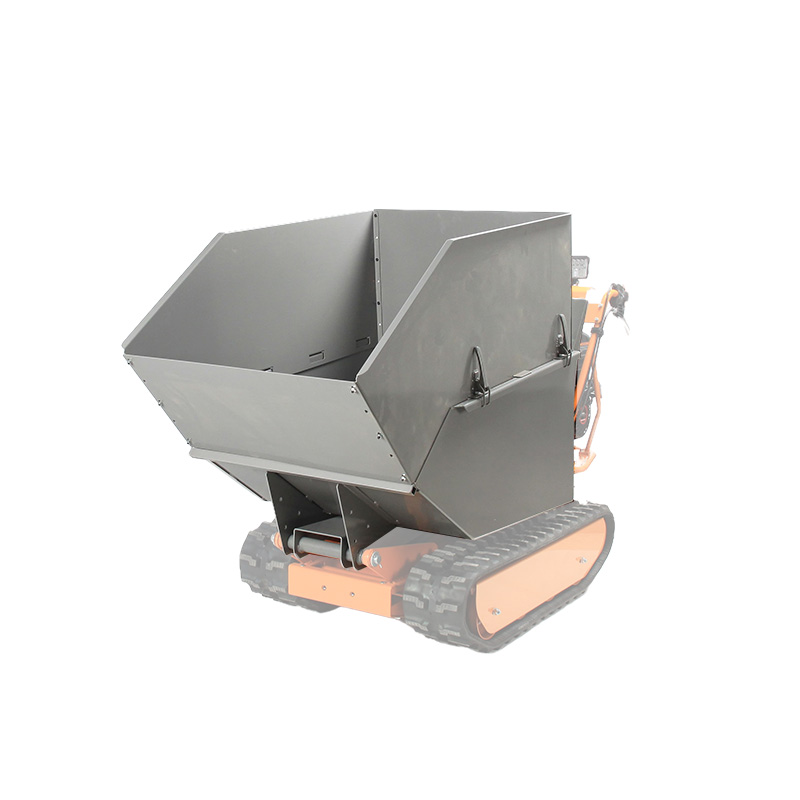

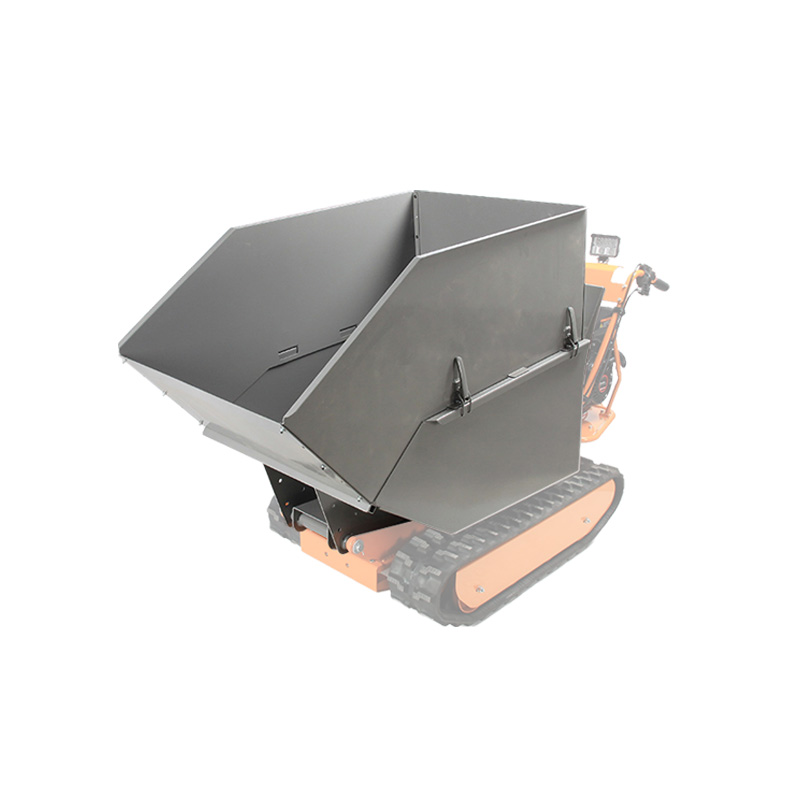

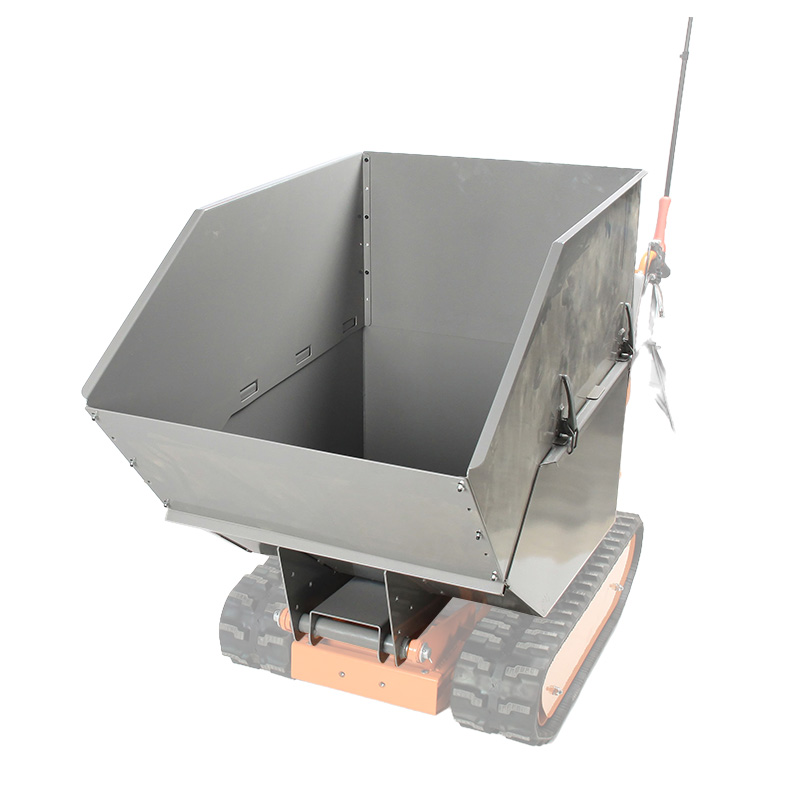

Bucket Extension
